311.0130.40 TI25
Inserts
Part number 311013040TI25
HORN Inserts 311.0130.40 TI25 for Milling
Please note:Technical instructions

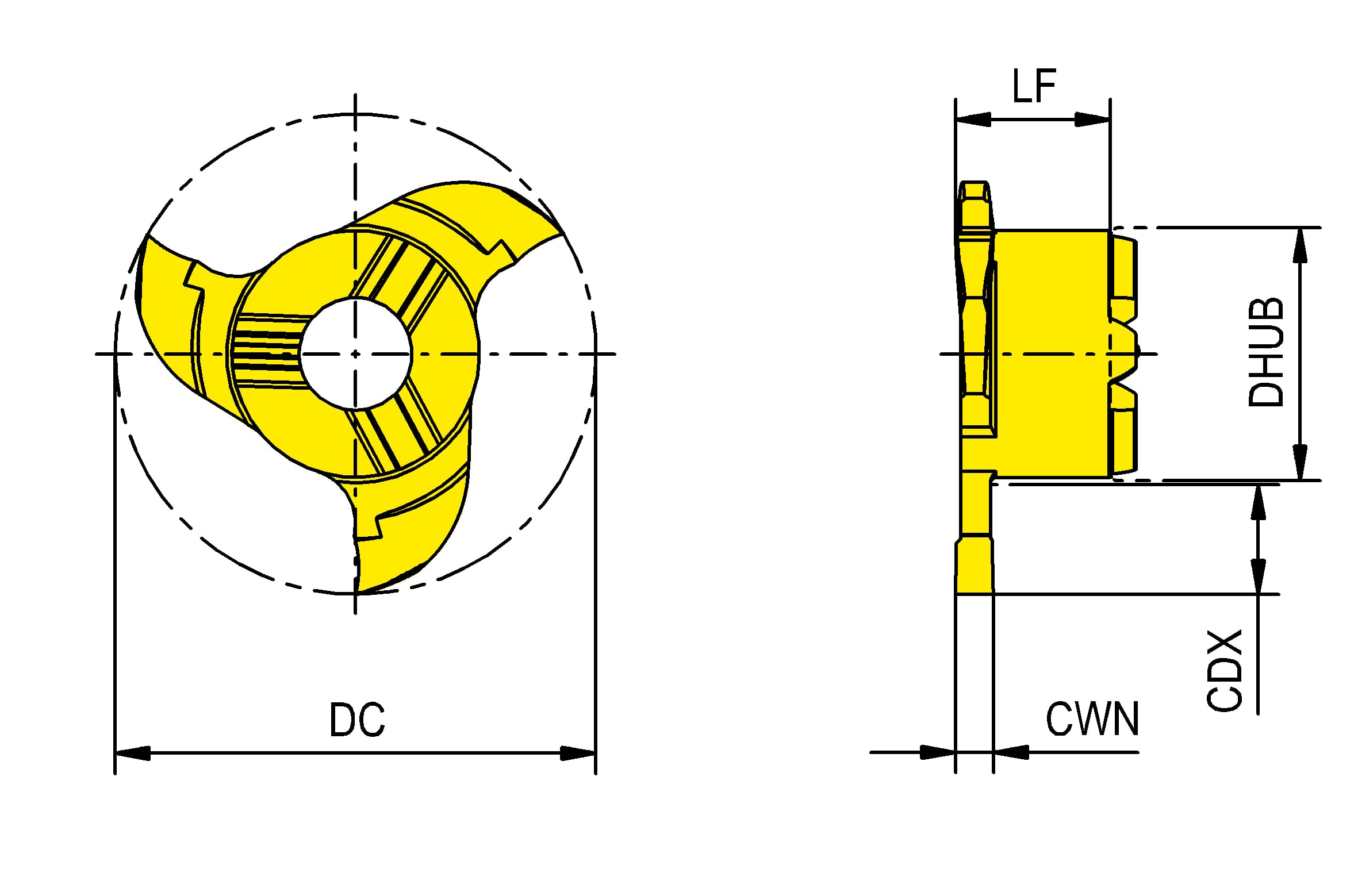

Wide retaining ring (RTRG)
1.3 mm
Cutting width minimum (CWN)
1.4 mm
Functional length (LF)
5.75 mm
hub diameter (DHUB)
9.1 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 311_0130_40_TI25-DXF.DXF | Download |
| 311_0130_40_TI25-STP.STP | Download |
| 311_0130_40_TI25-DIN.XML | Download |
| 311_0130_40_TI25-ISO.XML | Download |
| Download all files | |
