311.0150.00 AS45
Insert
Part number 311015000AS45
HORN Insert 311.0150.00 AS45 for Milling

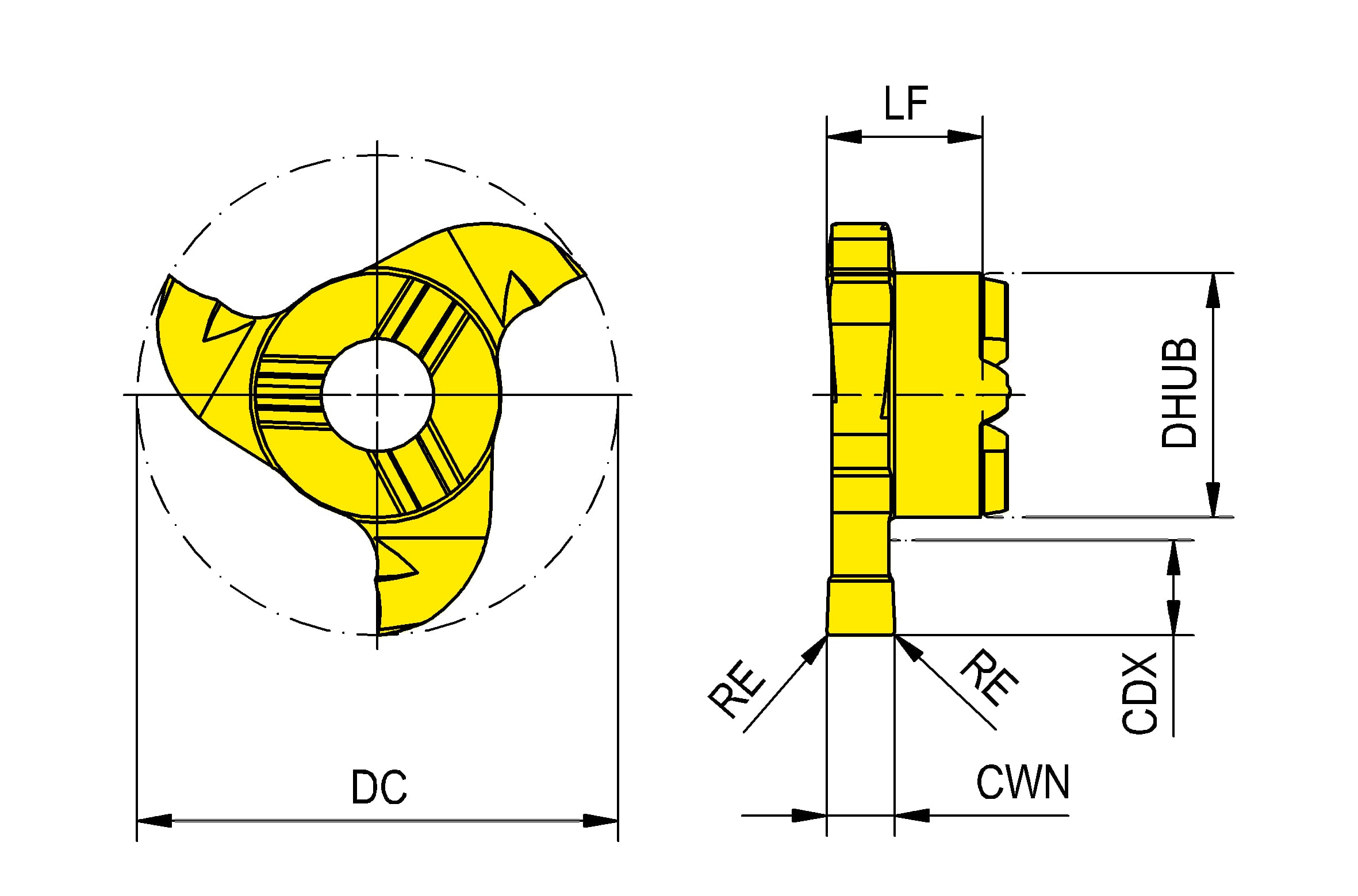

Please note:Technical instructions
Cutting width minimum (CWN)
1.51 mm
Functional length (LF)
5.75 mm
hub diameter (DHUB)
9.1 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 311_0150_00_AS45-ISO.XML | Download |
| 311_0150_00_AS45-DXF.DXF | Download |
| 311_0150_00_AS45-STP.STP | Download |
| 311_0150_00_AS45-DIN.XML | Download |
| Download all files | |
