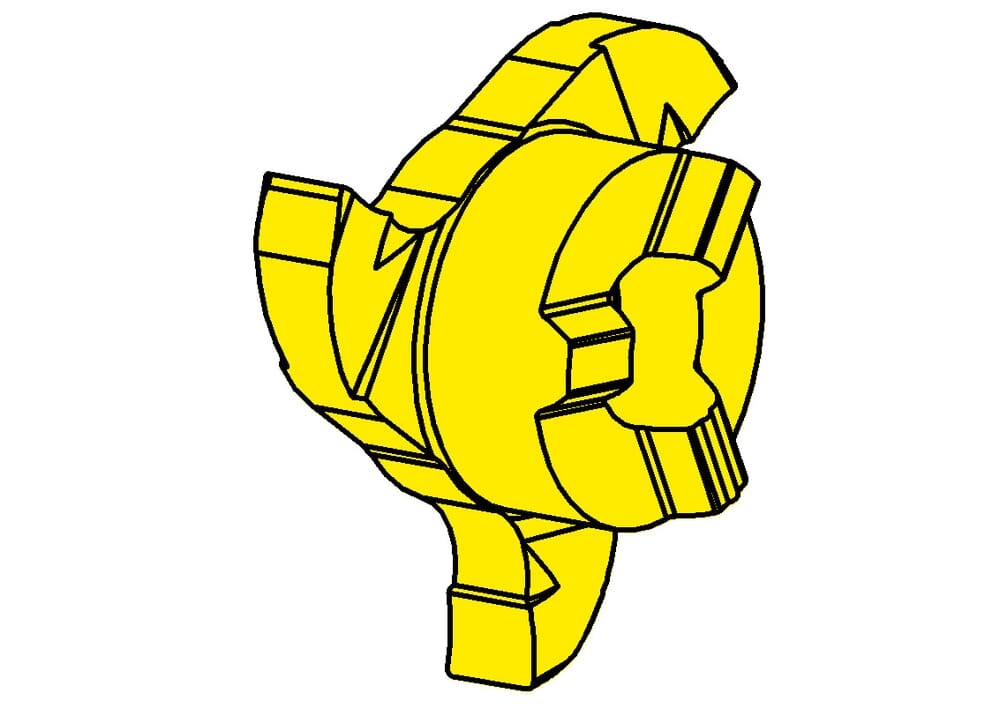

311.0150.40 TI25
Inserts
Part number 311015040TI25
HORN Inserts 311.0150.40 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
plating-seat-size
0
Width of groove (w)
1.5
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Cutting insert thickness, setting length complete (s)
5.75
mm
| Downloads | |
|---|---|
| 311_0150_40_TI25-DXF.DXF | Download |
| 311_0150_40_TI25-STP.STP | Download |
| 311_0150_40_TI25-DIN.XML | Download |
| Download all files | |
