311.0160.00 AS45
insert
Part number 311016000AS45

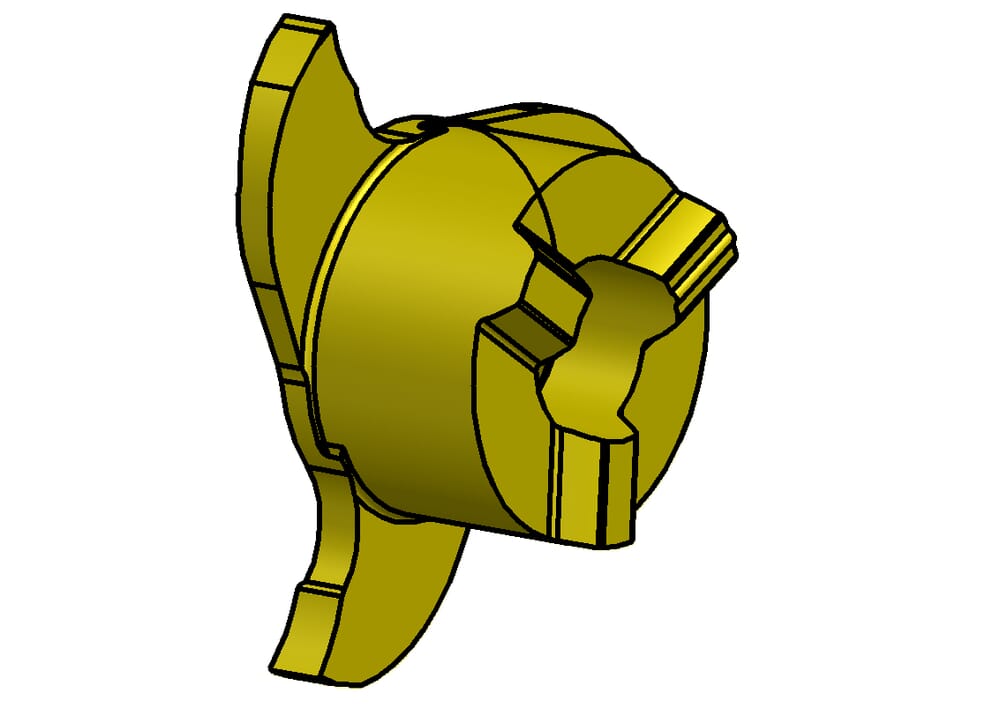

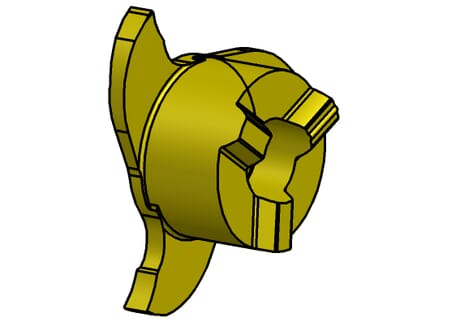

HORN insert 311.0160.00 AS45 for Milling
Please note:Technical instructions
Wide retaining ring (RTRG)
1.6 mm
Cutting width minimum (CWN)
1.7 mm
Functional length (LF)
5.75 mm
hub diameter (DHUB)
9.1 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 311_0160_00_AS45-DXF.DXF | Download |
| 311_0160_00_AS45-ISO.XML | Download |
| 311_0160_00_AS45-STP.STP | Download |
| 311_0160_00_AS45-DIN.XML | Download |
| Download all files | |
