311.0160.00 AS45
insert
Part number 311016000AS45
HORN insert 311.0160.00 AS45 for Milling
Please note:Technical instructions

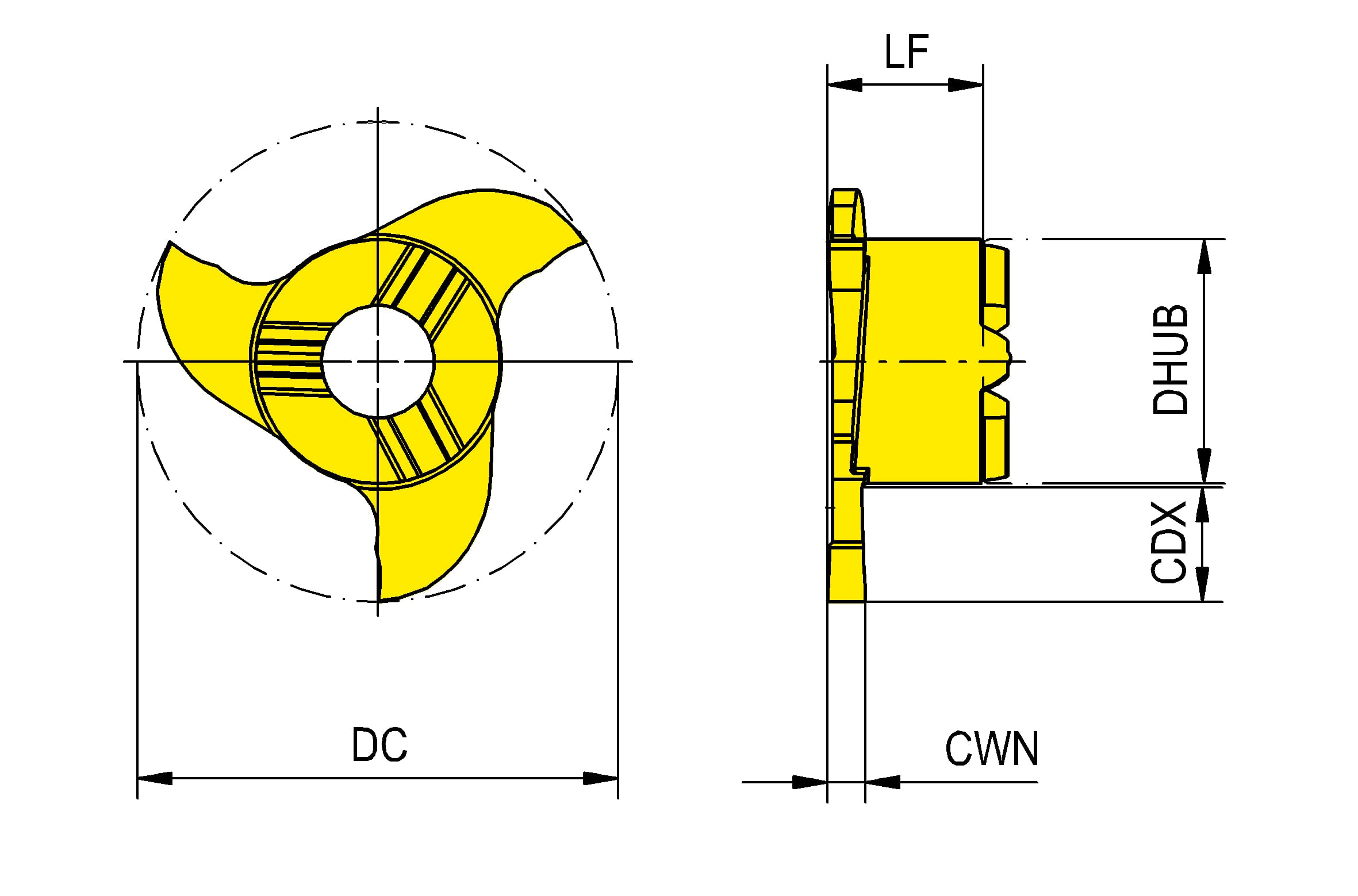

Breite Sicherungsring (RTRG)
1.6 mm
Schnittbreite minimum (CWN)
1.7 mm
Funktionslänge (LF)
5.75 mm
Nabendurchmesser (DHUB)
9.1 mm
Schneidendurchmesser (DC)
17.7 mm
Schnitttiefe, max. (CDX)
3.5 mm
| Downloads | |
|---|---|
| 311_0160_00_AS45-DXF.DXF | Download |
| 311_0160_00_AS45-ISO.XML | Download |
| 311_0160_00_AS45-STP.STP | Download |
| 311_0160_00_AS45-DIN.XML | Download |
| Download all files | |
