311.0200.40 TI25
Inserts
Part number 311020040TI25

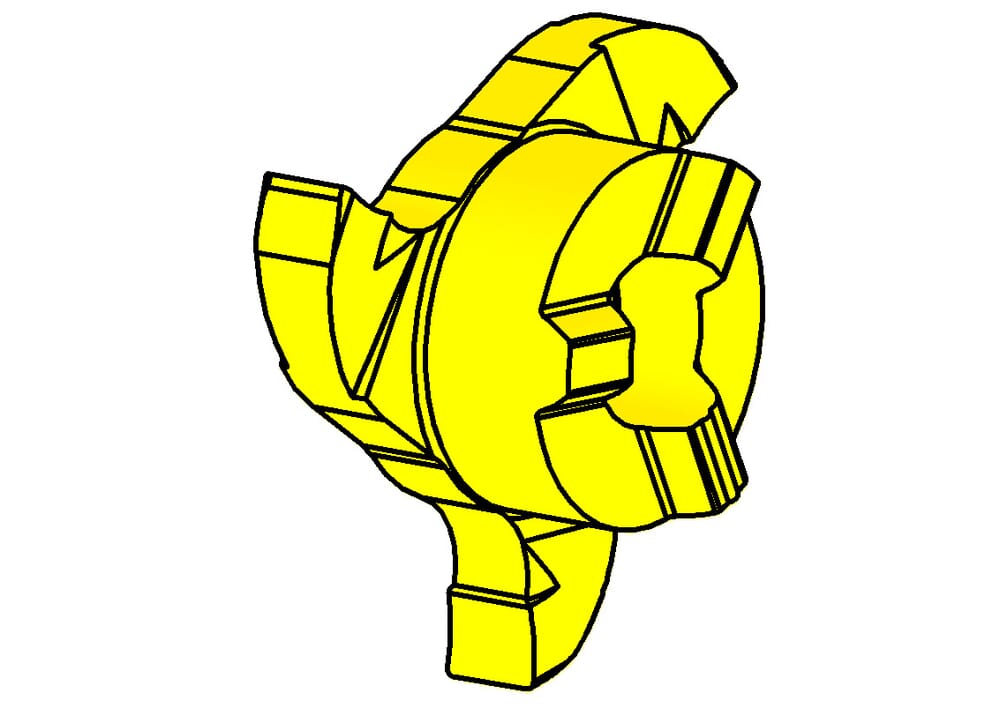

HORN Inserts 311.0200.40 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.75
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Width of groove (w)
2
mm
plating-seat-size
0
Katalog_SSC
311090R
DIN_SSC
HORN31109084R
ISO_SSC
HORN311090$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
17.7
mm
| Downloads | |
|---|---|
| 311020040_20210630_112548138.STP | Download |
| 311020040_20210625_133740233.DXF | Download |
| Download all files | |
