312.0110.05 EG55
Insert
Part number 312011005EG55
HORN Insert 312.0110.05 EG55 for Turning
Please note:Technical instructions

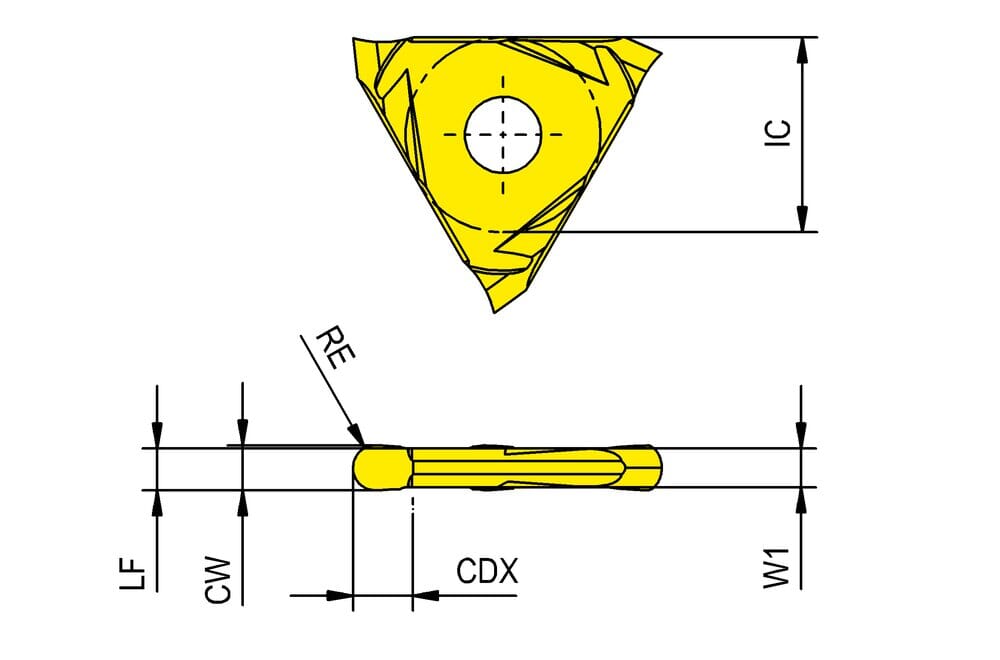

inscribed circle diameter (IC)
13 mm
insert width (W1)
0.92 mm
Corner radius (RE)
0.55 mm
Functional length (LF)
1.01 mm
Cutting width (CW)
1.1 mm
Cutting depth maximum (CDX)
4 mm
| Downloads | |
|---|---|
| 312_0110_05_EG55-DXF.DXF | Download |
| 312_0110_05_EG55-STP.STP | Download |
| 312_0110_05_EG55-ISO.XML | Download |
| 312_0110_05_EG55-DIN.XML | Download |
| Download all files | |
