312.0140.07 AS45
insert
Part number 312014007AS45
HORN insert 312.0140.07 AS45 for Turning
Please note:Technical instructions

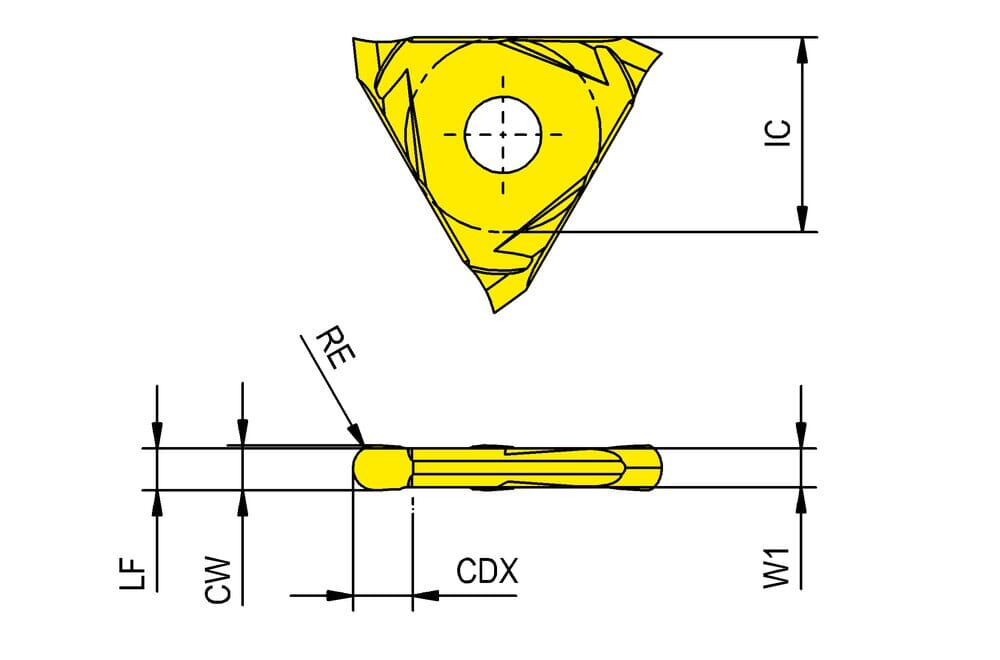

inscribed circle diameter (IC)
13 mm
insert width (W1)
1 mm
Corner radius (RE)
0.7 mm
Functional length (LF)
1.2 mm
Cutting width (CW)
1.4 mm
Cutting depth maximum (CDX)
4 mm
| Downloads | |
|---|---|
| 312_0140_07_AS45-STP.STP | Download |
| 312_0140_07_AS45-ISO.XML | Download |
| 312_0140_07_AS45-DIN.XML | Download |
| Download all files | |
