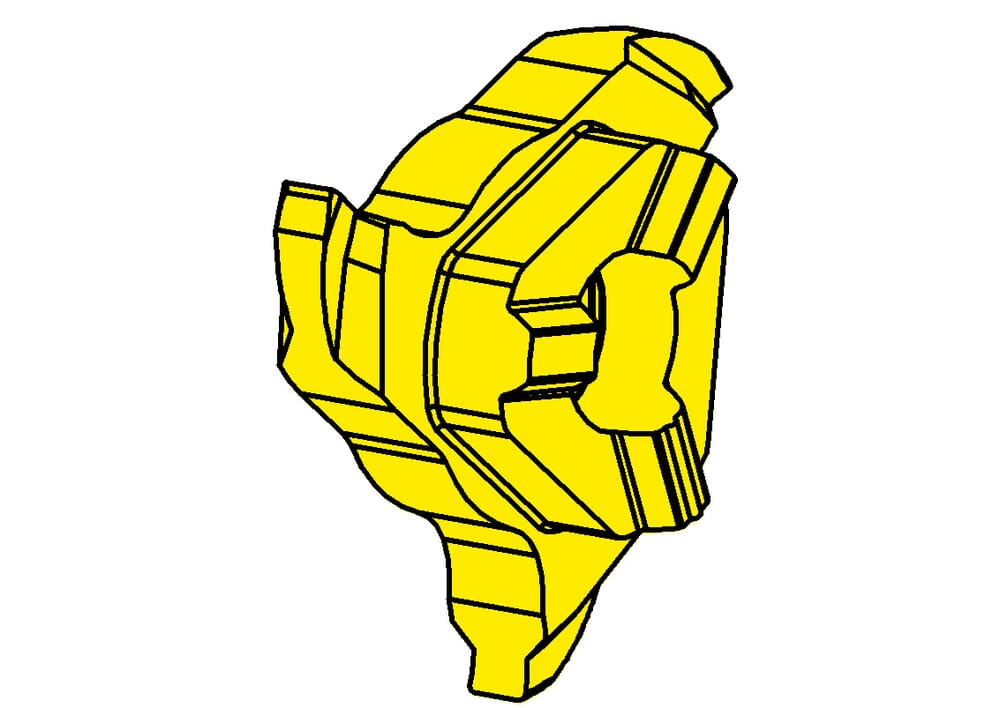

313.1609.35 TN35

Inserts

Part number 313160935TN35

HORN Inserts 313.1609.35 TN35 for Milling

Please note:Technical instructions

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

1.71 mm

Maximum milling depth/ depth of groove (tmax)

0.85 mm

Milling depth without NAKF (t1)

0.81 mm

Nominal range (Nw)

1.6 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.07 mm

Downloads
313_1609_35_TN35-DIN.XML	Download
313_1609_35_TN35-ISO.XML	Download
313_1609_35_TN35-DXF.DXF	Download
313_1609_35_TN35-STP.STP	Download
Download all files
