606.0025.00 IG35

insert

Part number 606002500IG35

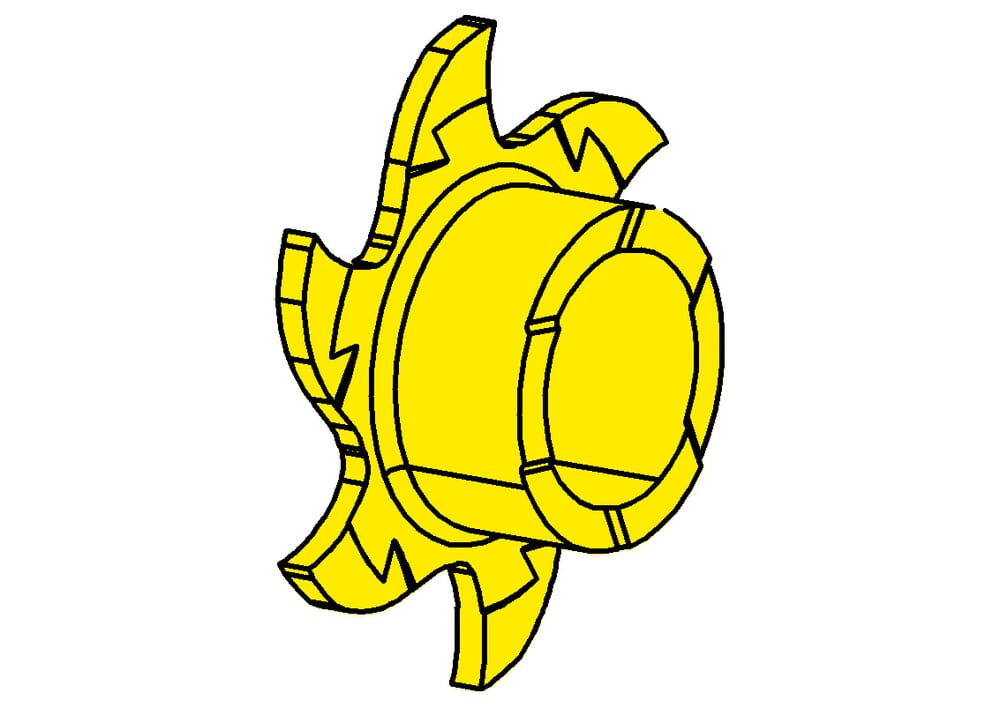

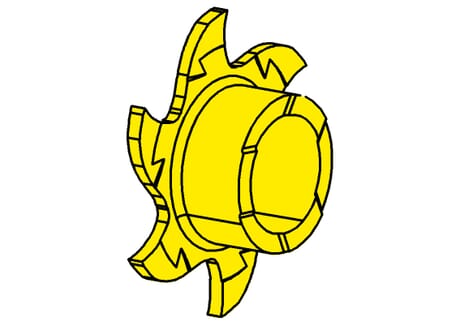

HORN insert 606.0025.00 IG35 for Milling

Cutting diameter (Ds)

11.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN306060$84R$$$$$

Katalog_SSC

306060R

Width of groove (w)

0.25 mm

Maximum milling depth/ depth of groove (tmax)

2.5 mm

Cutting insert thickness, setting length complete (s)

3.5 mm
