606.0060.00 EG35
insert
Part number 606006000EG35
HORN insert 606.0060.00 EG35 for Milling
Please note:Technical instructions

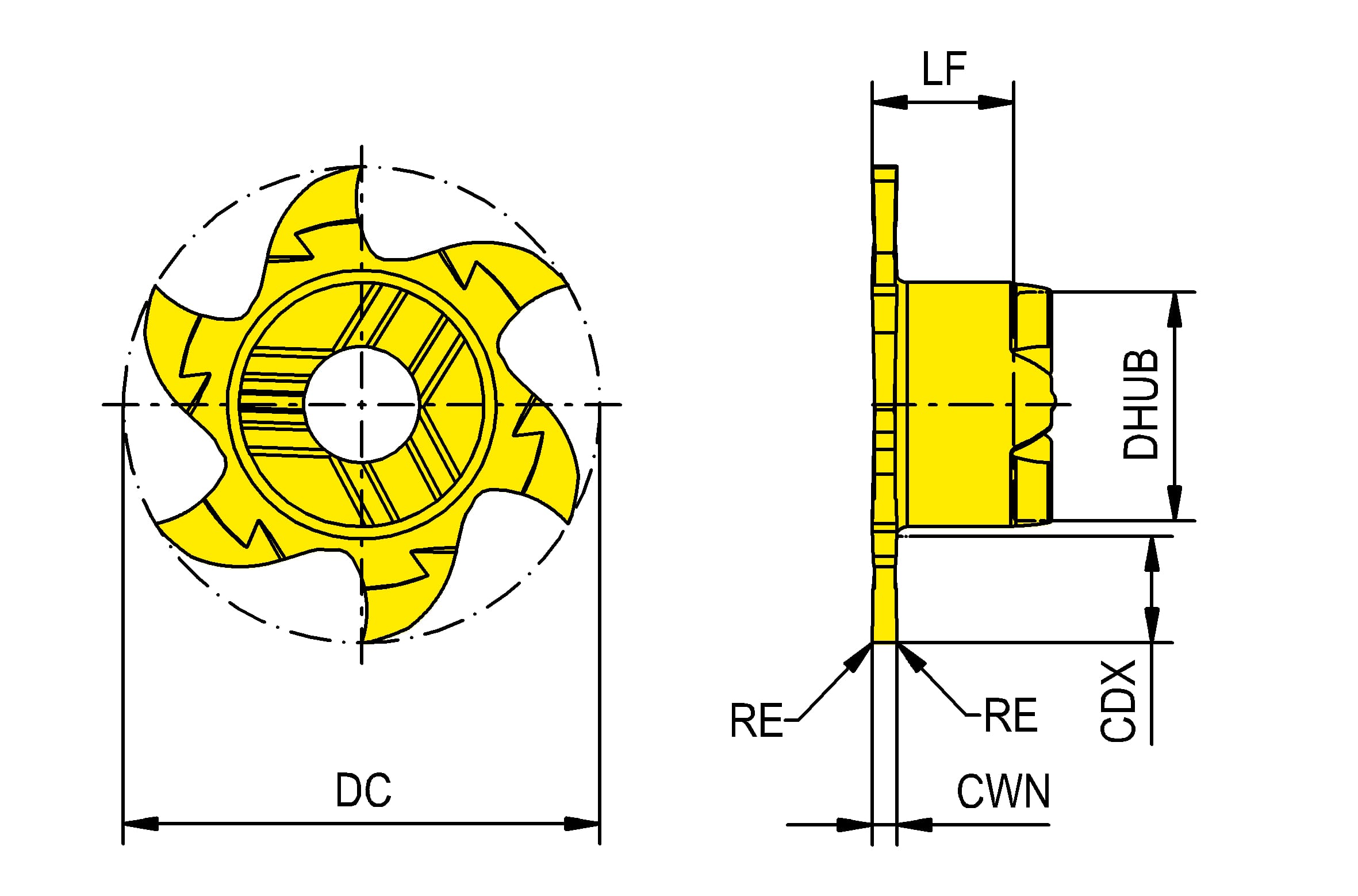

Cutting width minimum (CWN)
0.61 mm
Functional length (LF)
3.5 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
2.5 mm
| Downloads | |
|---|---|
| 606_0060_00_EG35-DIN.XML | Download |
| 606_0060_00_EG35-STP.STP | Download |
| 606_0060_00_EG35-ISO.XML | Download |
| 606_0060_00_EG35-DXF.DXF | Download |
| Download all files | |
