606.0090.00 IG35
insert
Part number 606009000IG35

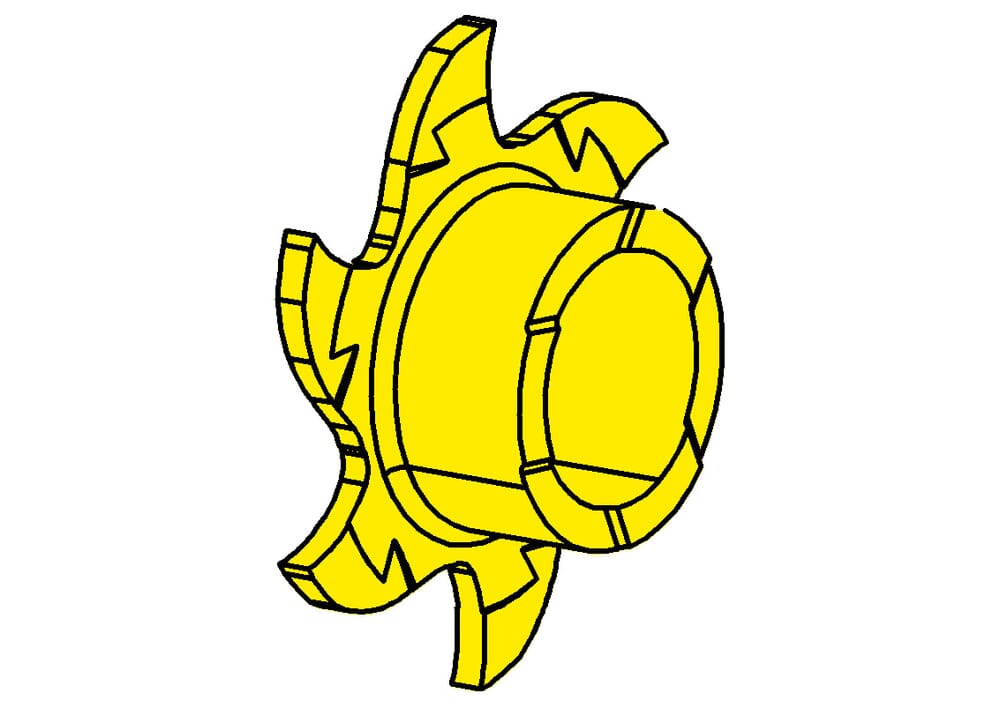

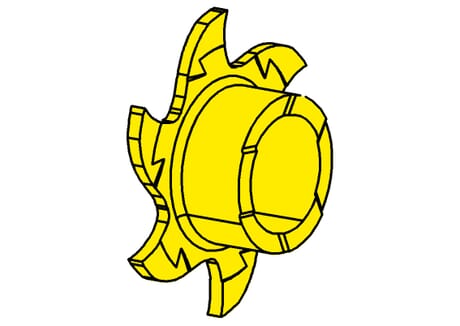

HORN insert 606.0090.00 IG35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Width of groove (w)
0.9
mm
Maximum milling depth/ depth of groove (tmax)
2.5
mm
Cutting insert thickness, setting length complete (s)
3.5
mm
| Downloads | |
|---|---|
| 606009000.STP | Download |
| 606009000_20240205_165501892.DXF | Download |
| Download all files | |
