606.0160.00 AS45
Insert
Part number 606016000AS45
HORN Insert 606.0160.00 AS45 for Milling
Please note:Technical instructions

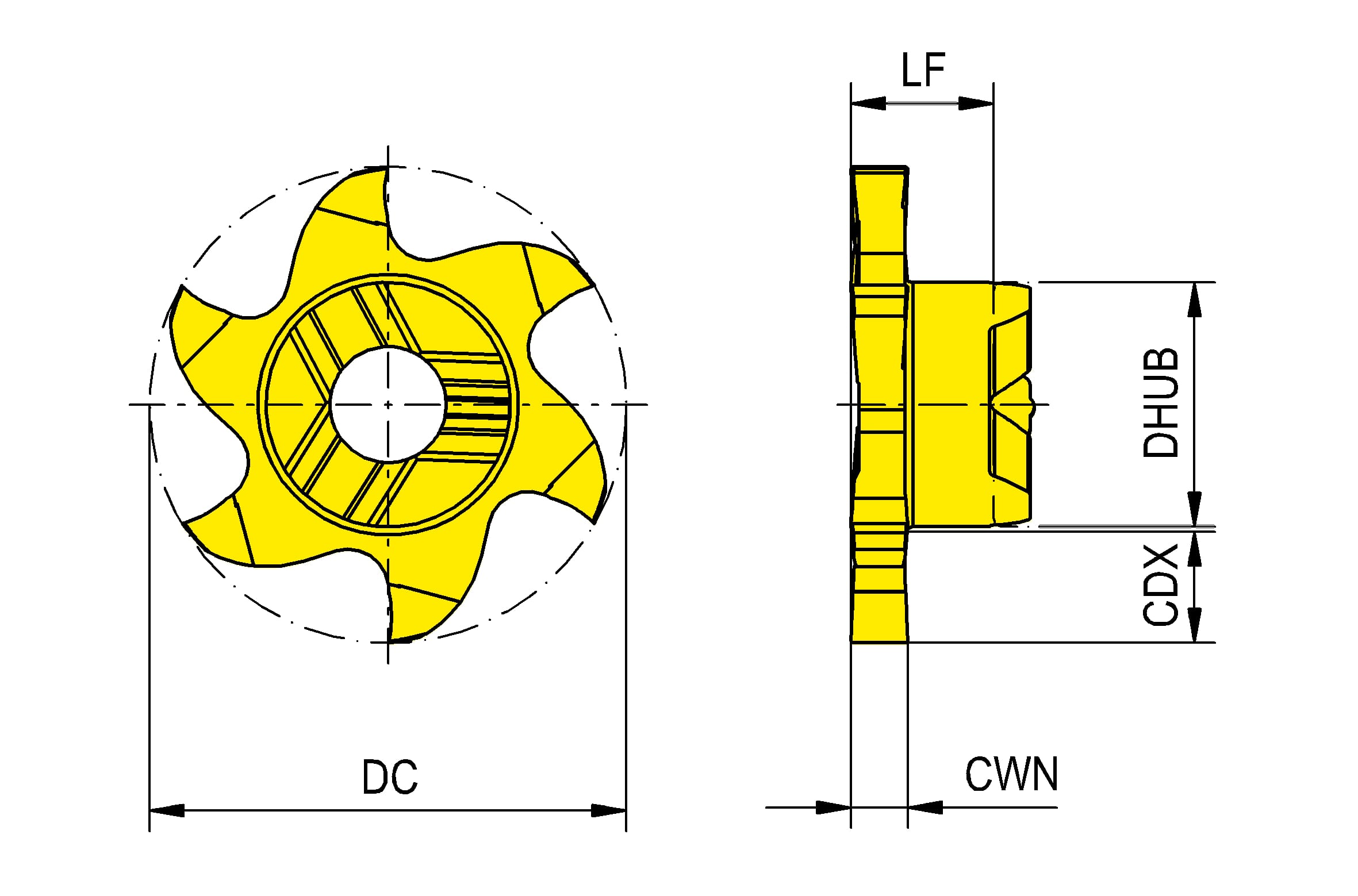

Wide retaining ring (RTRG)
1.6 mm
Cutting width minimum (CWN)
1.7 mm
Functional length (LF)
3.5 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
2.5 mm
| Downloads | |
|---|---|
| 606_0160_00_AS45-DXF.DXF | Download |
| 606_0160_00_AS45-ISO.XML | Download |
| 606_0160_00_AS45-STP.STP | Download |
| 606_0160_00_AS45-DIN.XML | Download |
| Download all files | |
