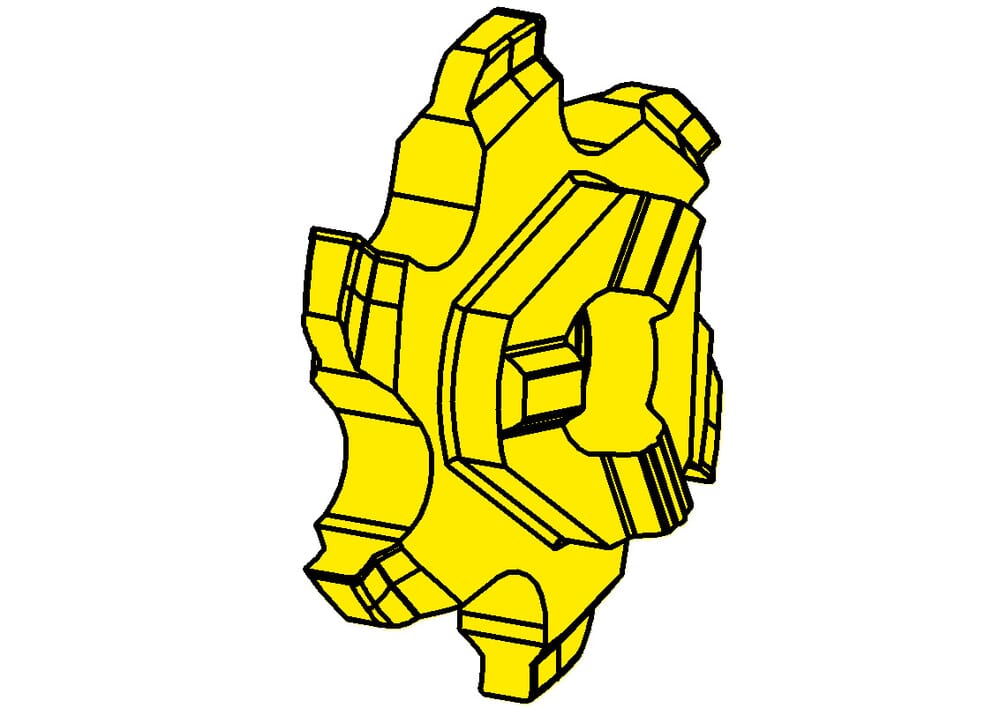

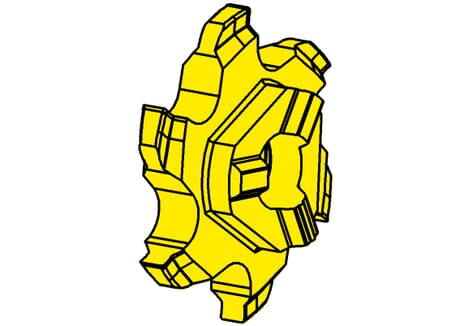

613.2115.35 AS45

Insert

Part number 613211535AS45

HORN Insert 613.2115.35 AS45 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

2.26 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Milling depth without NAKF (t1)

1.45 mm

Nominal range (Nw)

2.15 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

4.9 mm

Corner radius (r)

0.2 mm
