back to products
628_0185_00_TI25-PICTO.TIF
628_0185_00_TI25-PICTO.TIF 628018500.TIF

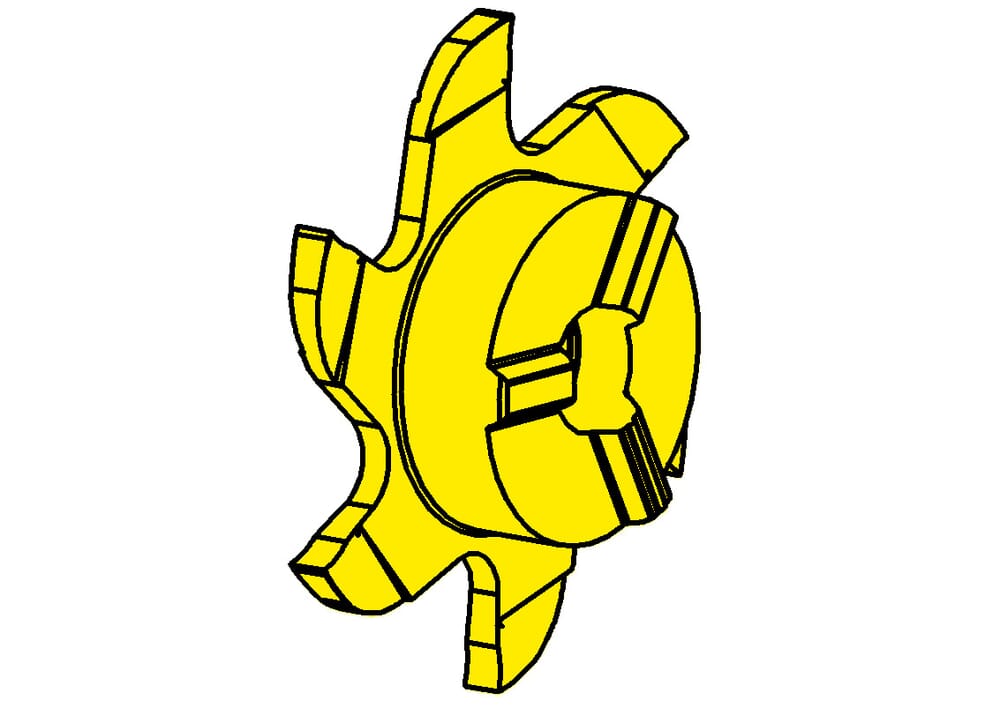

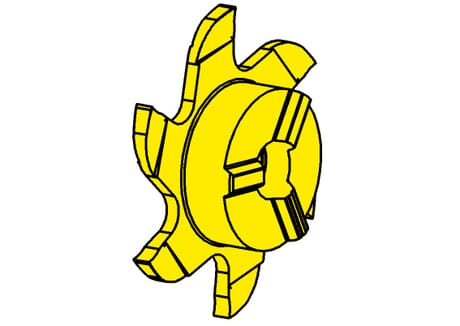

628.0185.00 TI25

Inserts

SEEGERRING.EPS VOLLRADIUS_NUT.EPS NUTFRAESEN.EPS TRENNFRAESEN.EPS INNEN_NUT.EPS ZAEHNEZAHL_Z6.EPS

Part number 628018500TI25

HORN Inserts 628.0185.00 TI25 for Milling

Please note:Technical instructions

Cutting diameter (Ds)
27.7 mm
Number of teeth (Z)
6 St.
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Width of groove (w)
1.96 mm
Maximum milling depth/ depth of groove (tmax)
6.5 mm
Nominal range (Nw)
1.85 mm
Cutting insert thickness, setting length complete (s)
6.1 mm
Corner radius (r)
0.2 mm
Downloads
628_0185_00_TI25-ISO.XML Download
628_0185_00_TI25-DXF.DXF Download
628_0185_00_TI25-STP.STP Download
628_0185_00_TI25-DIN.XML Download
Download all files
