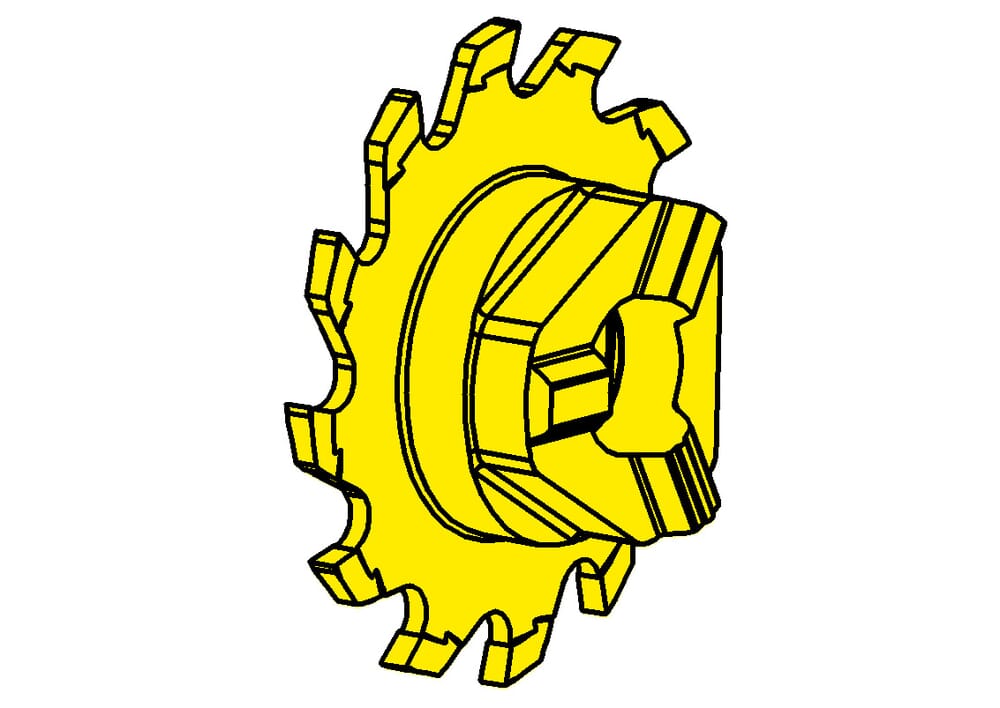

713_0150_00_TI25-PICTO.TIF
713_0150_00_TI25-PICTO.TIF 713015000.TIF

713.0150.00 TI25

Insert

INNEN_NUT.EPS NUTFRAESEN.EPS TRENNFRAESEN.EPS SEEGERRING.EPS VOLLRADIUS_NUT.EPS ZAEHNEZAHL_Z12.EPS

Part number 713015000TI25

HORN Insert 713.0150.00 TI25 for Milling

Please note:Technical instructions

Cutting diameter (Ds)
21.7 mm
Number of teeth (Z)
12 St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
1.5 mm
Maximum milling depth/ depth of groove (tmax)
4.5 mm
Cutting insert thickness, setting length complete (s)
5.9 mm
Downloads
713_0150_00_TI25-ISO.XML Download
713_0150_00_TI25-DXF.DXF Download
713_0150_00_TI25-STP.STP Download
713_0150_00_TI25-DIN.XML Download
Download all files
