D1122.03.A1020C ES35

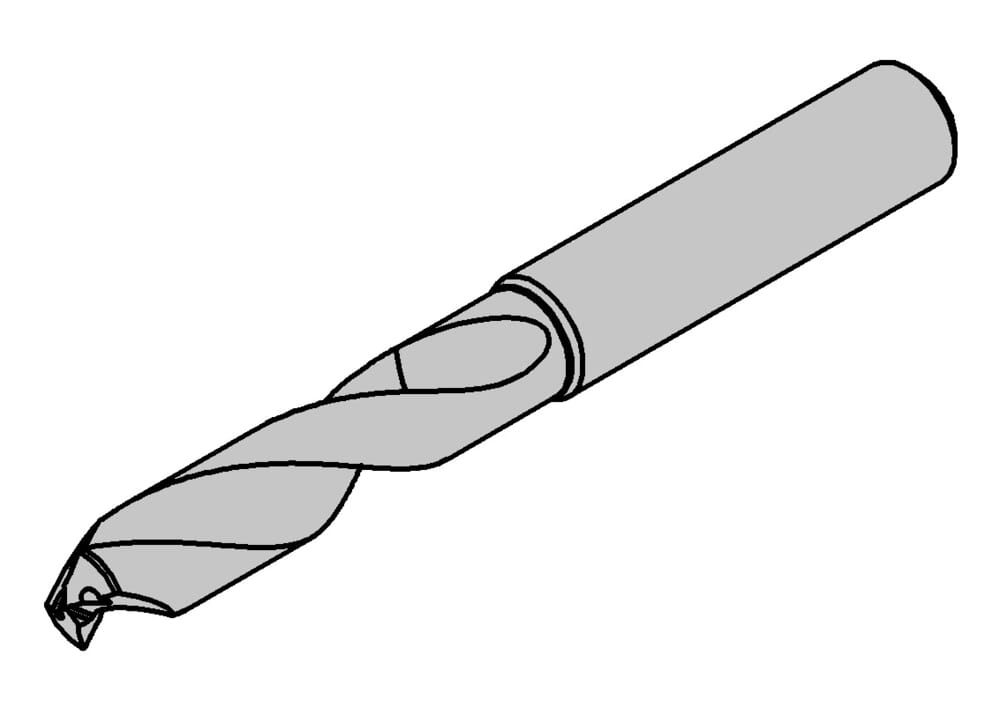

Solid carbide drill DIN6537 short
Part number D112203A1020CES35
HORN Solid carbide drill DIN6537 short D1122.03.A1020C ES35 for Drilling
Please note:Technical instructions
Shank diameter (d2h6)
12 mm
Chip flute length (l2)
55 mm
Nominal diameter (d1m7)
10.2 mm
Drilling depth (l3)
40 mm
Form (Form)
DIN 6335 HA
Total length (l1)
102 mm
| Downloads | |
|---|---|
| D1122_03_A1020C_ES35-STP.STP | Download |
| D1122_03_A1020C_ES35-ISO.XML | Download |
| D1122_03_A1020C_ES35-DIN.XML | Download |
| D1122_03_A1020C_ES35-DXF.DXF | Download |
| Download all files | |
