L105.0150.1.6 TN35
Inserts
Part number L105015016TN35

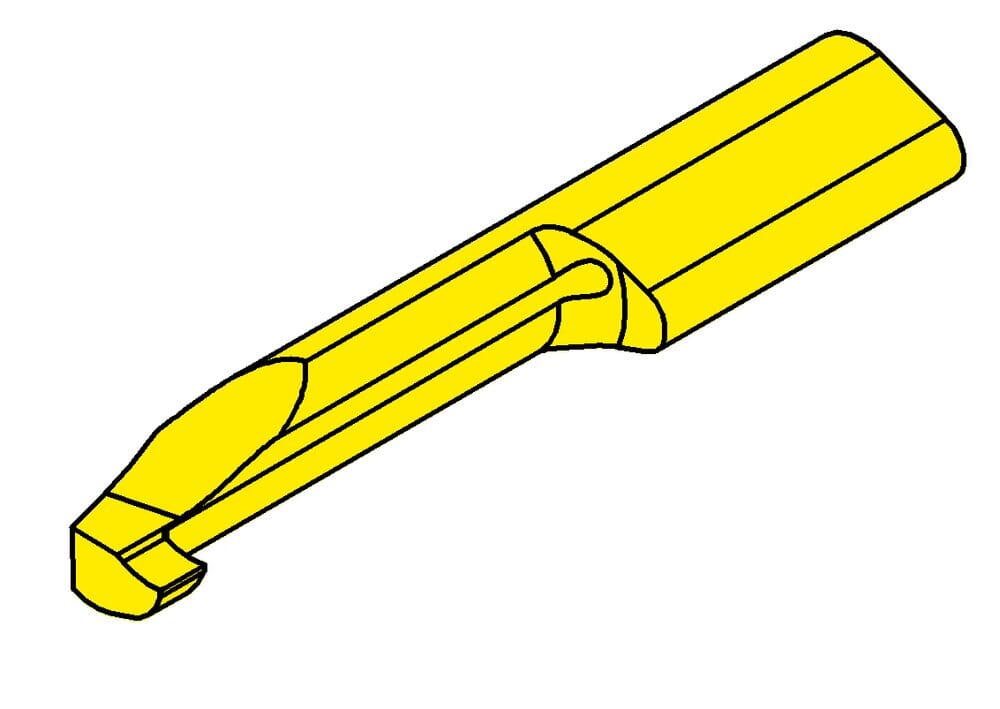

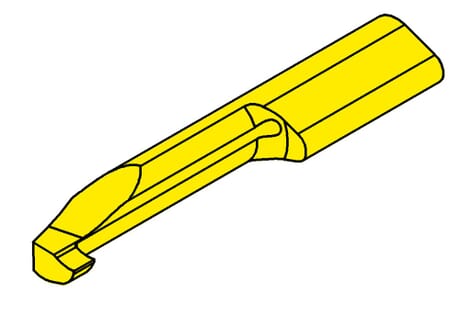

HORN Inserts L105.0150.1.6 TN35 for Turning
Please note:Technical instructions
Width of groove (w)
1.5 mm
Smallest bore diameter (Dmin)
6 mm
Total length (l5)
25 mm
Setting range radial (f)
3.3 mm
Neck diameter (d)
3.7 mm
Neck length (l2)
10 mm
Katalog_SSC
105125
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1.8 mm
Head size (a)
5.7 mm
| Downloads | |
|---|---|
| L105_0150_1_6_TN35-ISO.XML | Download |
| L105_0150_1_6_TN35-DIN.XML | Download |
| L105_0150_1_6_TN35-DXF.DXF | Download |
| L105_0150_1_6_TN35-STP.STP | Download |
| Download all files | |
