L105.0810.4.5 TI25
insert
Part number L105081045TI25

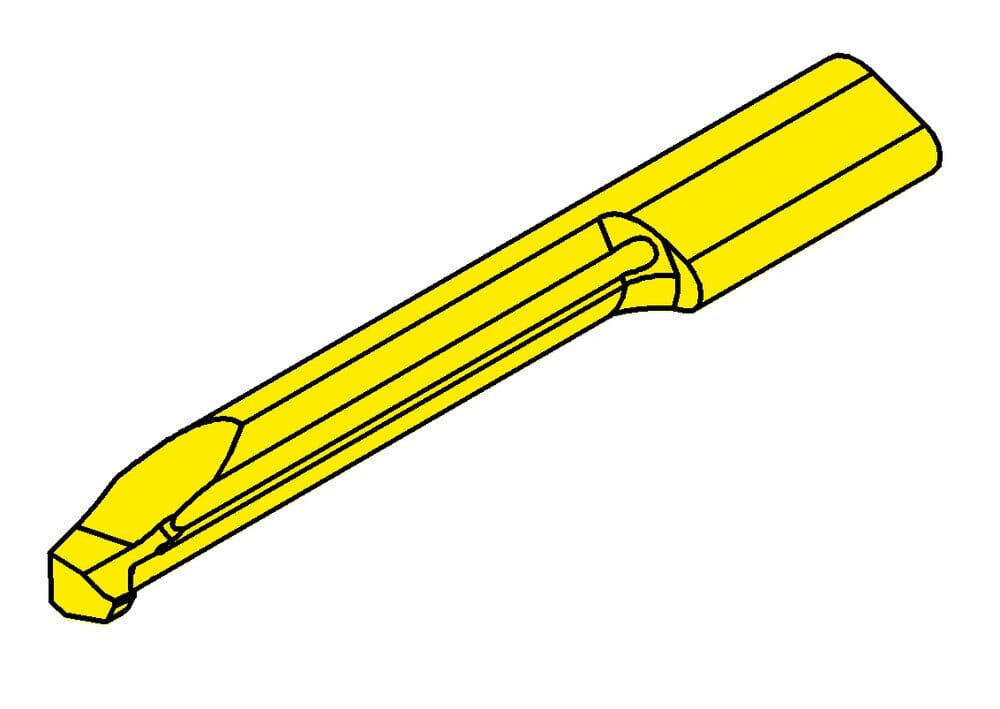

HORN insert L105.0810.4.5 TI25 for Turning
Please note:Technical instructions
Katalog_SSC
105125
Smallest bore diameter (Dmin)
5 mm
Total length (l5)
40 mm
Setting range radial (f)
2.3 mm
Neck diameter (d)
3.5 mm
Width of groove (w)
1 mm
Neck length (l2)
25 mm
ISO_SSC
HORN105125$95N$$$$$
Depth of pre-groove (t1)
0.2 mm
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.7 mm
Head size (a)
4.7 mm
| Downloads | |
|---|---|
| L105_0810_4_5_20171121_211445296.STP | Download |
| L105_0810_4_5_TI25-DIN.XML | Download |
| L105_0810_4_5_TI25-ISO.XML | Download |
| Download all files | |
