L105.0810.4.5 EG35
Insert
Part number L105081045EG35

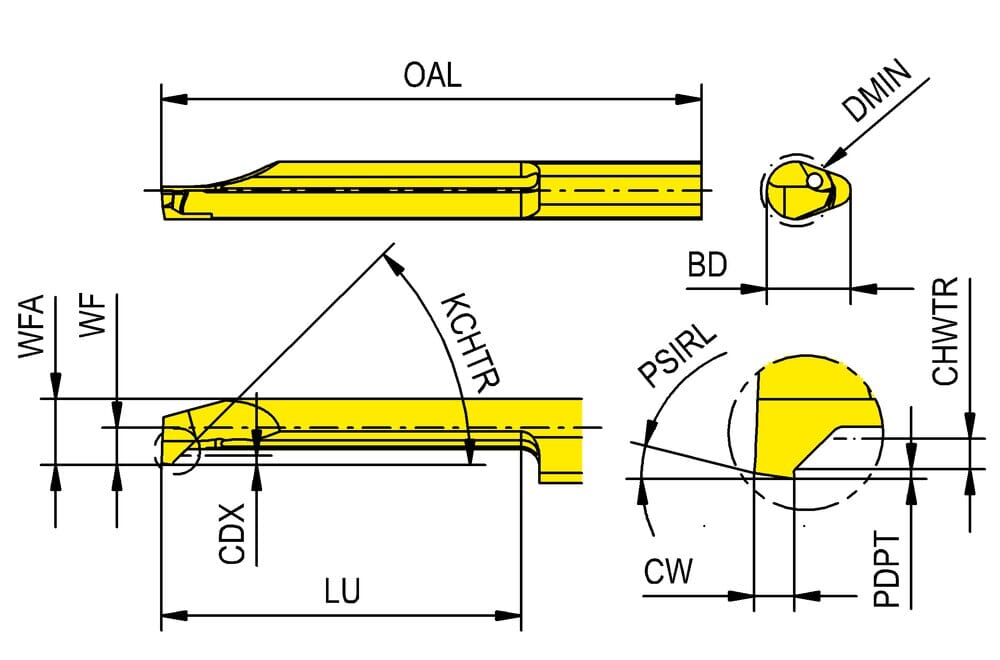

HORN Insert L105.0810.4.5 EG35 for Turning
Please note:Technical instructions
Funktional width (WF)
2.3 mm
Body diameter (BD)
7 mm
Cutting depth maximum (CDX)
0.7 mm
Cutting width (CW)
1 mm
Minimum bore diameter (DMIN)
5 mm
Usable length (LU)
25 mm
Overall length (OAL)
40 mm
profile depth insert (PDPT)
0.2 mm
Cutting edge angle major left hand (PSIRL)
8 °
Flank chamfer width, right (CHWTR)
0.5 mm
Dimension a at working width (WFA)
4.7 mm
Flank chamfer angle right hand (KCHTR)
45 °
Cutting edge count (CEDC)
1
