L105.0815.1.8 EG35
Insert
Part number L105081518EG35
HORN Insert L105.0815.1.8 EG35 for Turning
Please note:Technical instructions

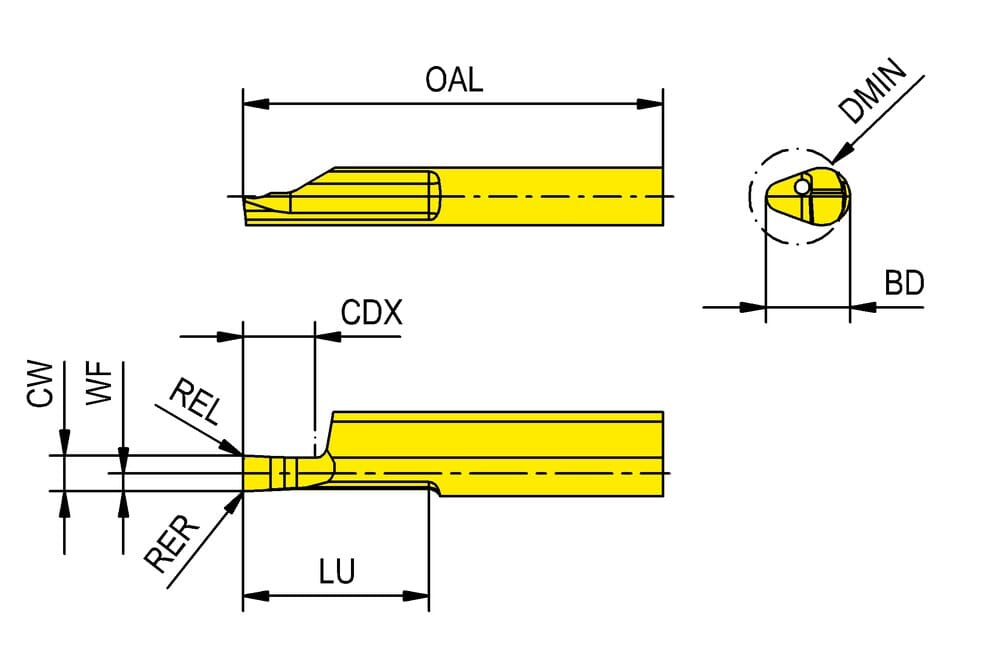

Cutting edge count (CEDC)
1
Funktional width (WF)
2 mm
corner radius left hand (REL)
0.15 mm
corner radius right hand (RER)
0.15 mm
Overall length (OAL)
25 mm
Usable length (LU)
10 mm
Minimum bore diameter (DMIN)
8 mm
Cutting width (CW)
1.5 mm
Cutting depth maximum (CDX)
3 mm
Body diameter (BD)
7 mm
| Downloads | |
|---|---|
| L105_0815_1_8_EG35-DXF.DXF | Download |
| L105_0815_1_8_EG35-STP.STP | Download |
| L105_0815_1_8_EG35-ISO.XML | Download |
| L105_0815_1_8_EG35-DIN.XML | Download |
| Download all files | |
