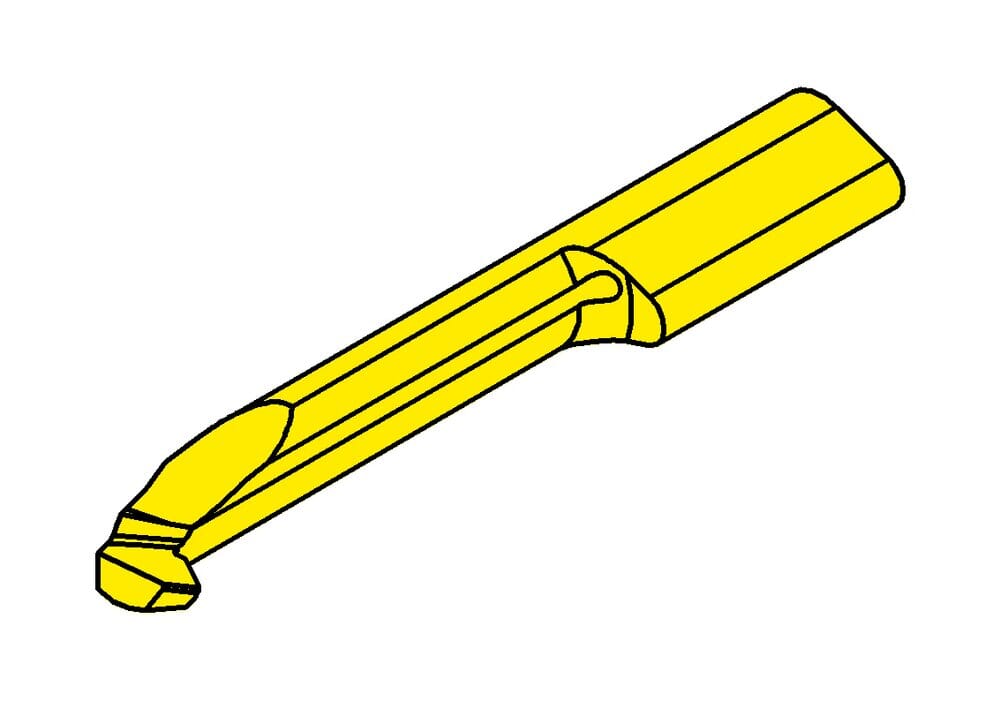

L105.0815.3.7 EG35
Inserts
Part number L105081537EG35
HORN Inserts L105.0815.3.7 EG35 for Gewinden
Please note:Technical instructions
Setting range radial (f)
4 mm
Maximum pitch (Pmax)
1.5 mm
Pitch (P)
1.5 mm
Smallest bore diameter (Dmin)
7 mm
Setting length (E)
0.75 mm
Cutting insert width (a)
6.4 mm
Neck length (l2)
20 mm
Neck diameter (d)
3.7 mm
Katalog_SSC
105125
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
35 mm
number-of-teeth
1 St.
| Downloads | |
|---|---|
| L105_0815_3_7_EG35-DXF.DXF | Download |
| L105_0815_3_7_EG35-STP.STP | Download |
| L105_0815_3_7_EG35-ISO.XML | Download |
| L105_0815_3_7_EG35-DIN.XML | Download |
| Download all files | |
