L105.1019.3.4 EG35
insert
Part number L105101934EG35
HORN insert L105.1019.3.4 EG35 for Turning
Please note:Technical instructions

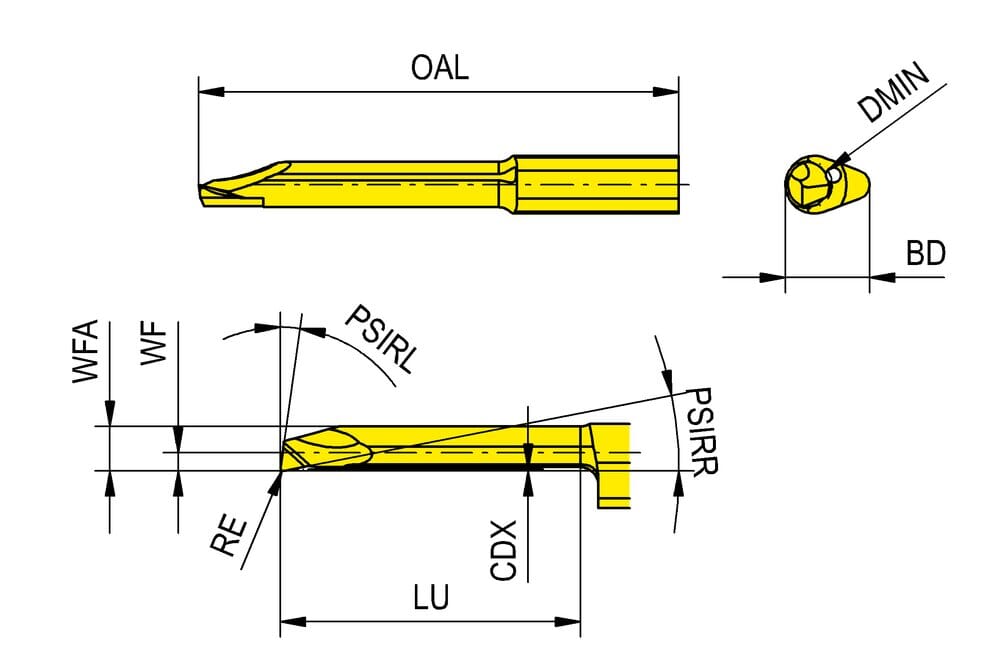

Cutting edge count (CEDC)
1
Dimension a at working width (WFA)
3.7 mm
Funktional width (WF)
1.5 mm
Corner radius (RE)
0.2 mm
Cutting edge angle major right hand (PSIRR)
11 °
Cutting edge angle major left hand (PSIRL)
8 °
Overall length (OAL)
35 mm
Usable length (LU)
20 mm
Minimum bore diameter (DMIN)
4 mm
Cutting depth maximum (CDX)
0.15 mm
Body diameter (BD)
7 mm
| Downloads | |
|---|---|
| L105_1019_3_4_EG35-DXF.DXF | Download |
| L105_1019_3_4_EG35-STP.STP | Download |
| L105_1019_3_4_EG35-ISO.XML | Download |
| L105_1019_3_4_EG35-DIN.XML | Download |
| Download all files | |
