L105.1023.005.6.5 EG35
Insert
Part number L105102300565EG35

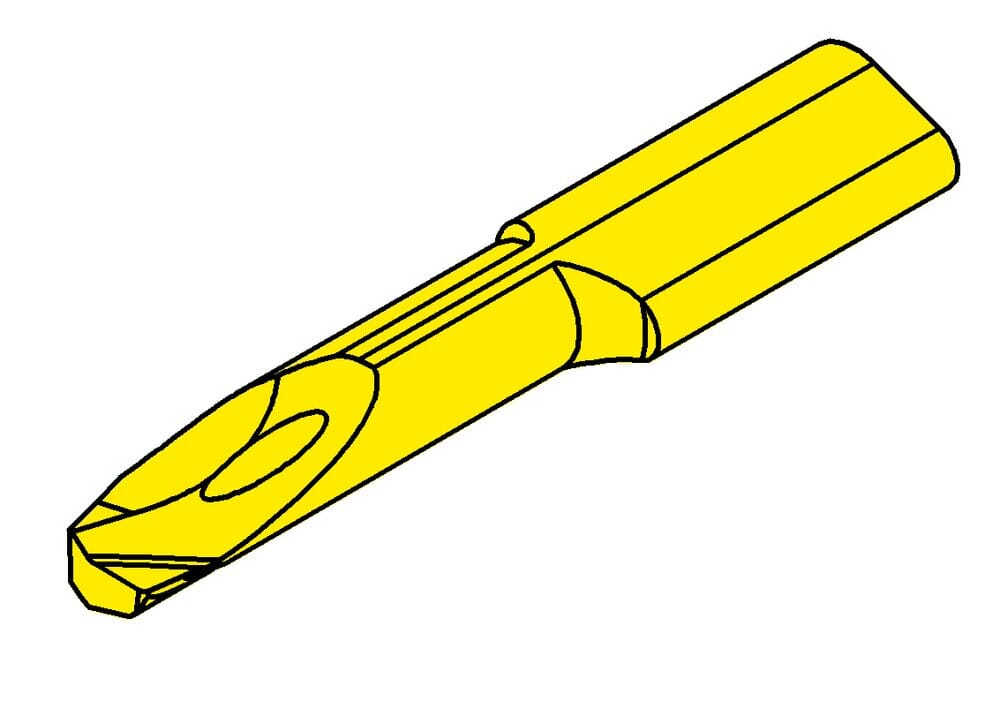

HORN Insert L105.1023.005.6.5 EG35 for Turning
Please note:Technical instructions
Katalog_SSC
105125
Smallest bore diameter (Dmin)
5 mm
Total length (l5)
50 mm
Setting range radial (f)
2.8 mm
Neck diameter (d)
4.4 mm
Neck length (l2)
35 mm
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.15 mm
Head size (a)
4.7 mm
Top radius (r)
0.05 mm
