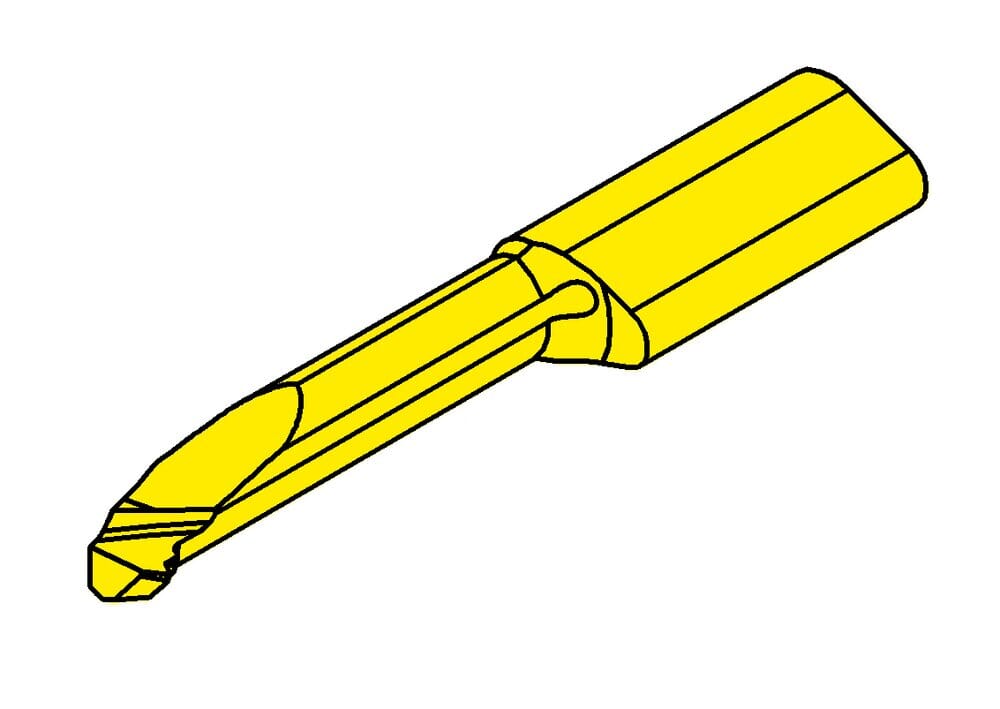

L105.VPM5.2.5 EG35
Inserts
Part number L105VPM525EG35
HORN Inserts L105.VPM5.2.5 EG35 for Gewinden
Please note:Technical instructions
Pitch (P)
0.8
mm
Smallest bore diameter (Dmin)
4.1
mm
Setting length (E)
0.5
mm
Cutting insert width (a)
3.7
mm
Setting range radial (f)
2
mm
Neck diameter (d)
2.8
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
30
mm
number-of-teeth
1
St.
Neck length (l2)
15
mm
