L105.VPM5.2.5 EG35
Inserts
Part number L105VPM525EG35
HORN Inserts L105.VPM5.2.5 EG35 for Gewinden
Please note:Technical instructions

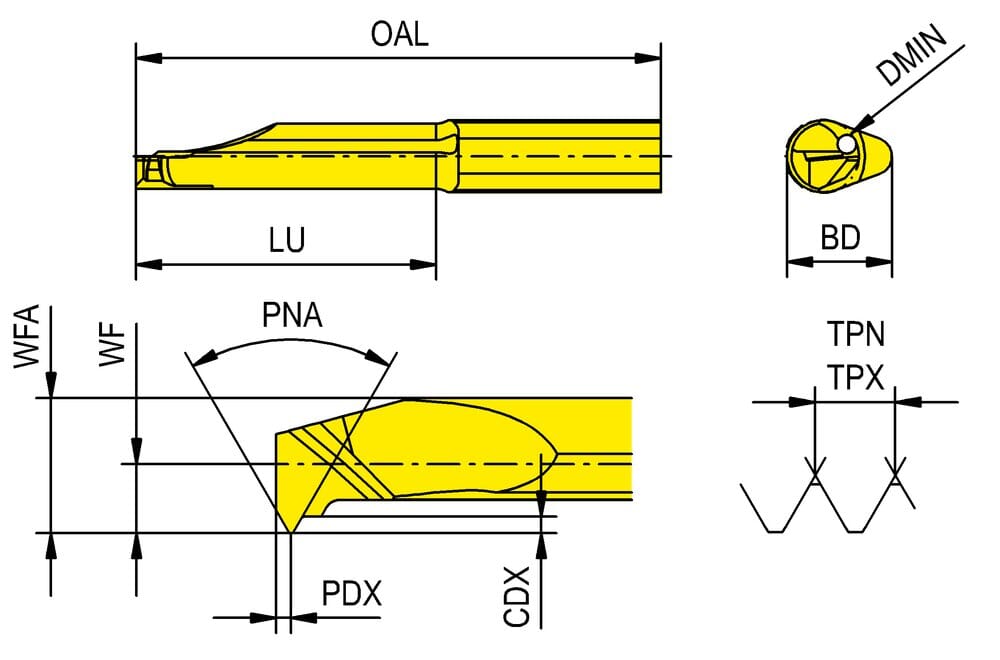

Thred pitch maximum (TPX)
0.8 mm
Body diameter (BD)
7 mm
Cutting depth maximum (CDX)
0.6 mm
Minimum bore diameter (DMIN)
4.1 mm
Usable length (LU)
15 mm
Overall length (OAL)
30 mm
profile depth insert (PDPT)
0.442 mm
profile distance x (PDX)
0.5 mm
Thread pitch minimum (TPN)
0.8 mm
Funktional width (WF)
2 mm
Profile included angle (PNA)
60 °
Dimension a at working width (WFA)
3.7 mm
Cutting edge count (CEDC)
1
| Downloads | |
|---|---|
| L105_VPM5_2_5_EG35-DXF.DXF | Download |
| L105_VPM5_2_5_EG35-STP.STP | Download |
| L105_VPM5_2_5_EG35-ISO.XML | Download |
| L105_VPM5_2_5_EG35-DIN.XML | Download |
| Download all files | |
