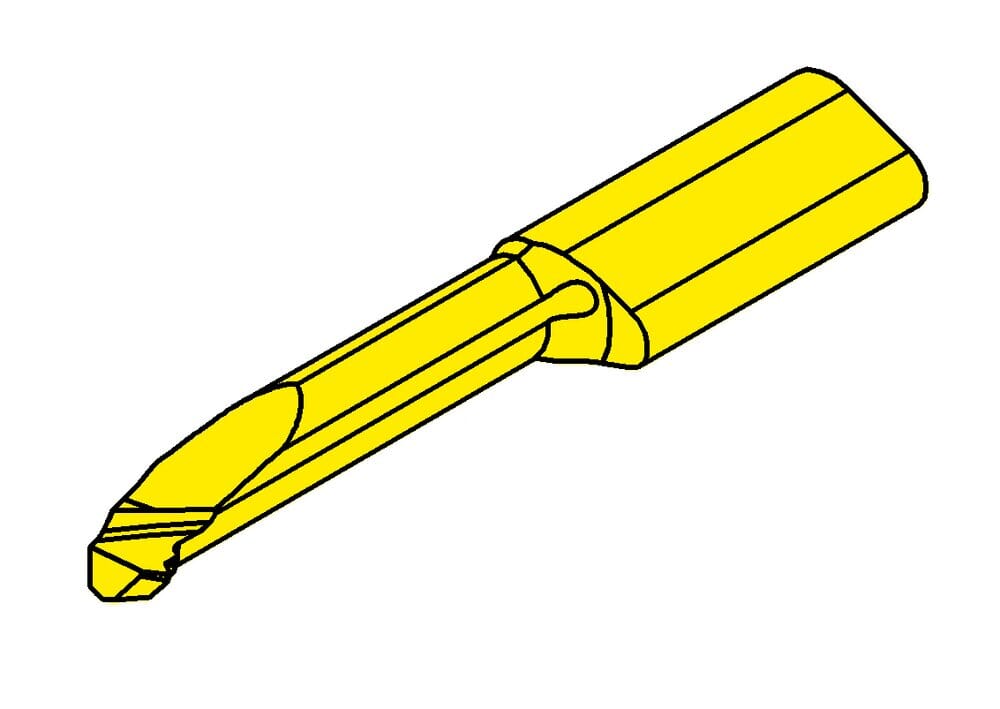

L105.VPM8.3.8 EG35
Inserts
Part number L105VPM838EG35
HORN Inserts L105.VPM8.3.8 EG35 for Gewinden
Please note:Technical instructions
Width of blank (b)
7 mm
Pitch (P)
1.25 mm
Smallest bore diameter (Dmin)
6.6 mm
Setting length (E)
0.7 mm
Cutting insert width (a)
6.2 mm
Setting range radial (f)
3.8 mm
Neck diameter (d)
4.7 mm
Katalog_SSC
105125
ISOSSC
HORN105125$95N$$$$$
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
35 mm
number-of-teeth
1 St.
Neck length (l2)
20 mm
| Downloads | |
|---|---|
| L105_VPM8_3_8_EG35-DXF.DXF | Download |
| L105_VPM8_3_8_EG35-STP.STP | Download |
| L105_VPM8_3_8_EG35-ISO.XML | Download |
| L105_VPM8_3_8_EG35-DIN.XML | Download |
| Download all files | |
