L108.0006.12 MG12
Inserts
Part number L108000612MG12

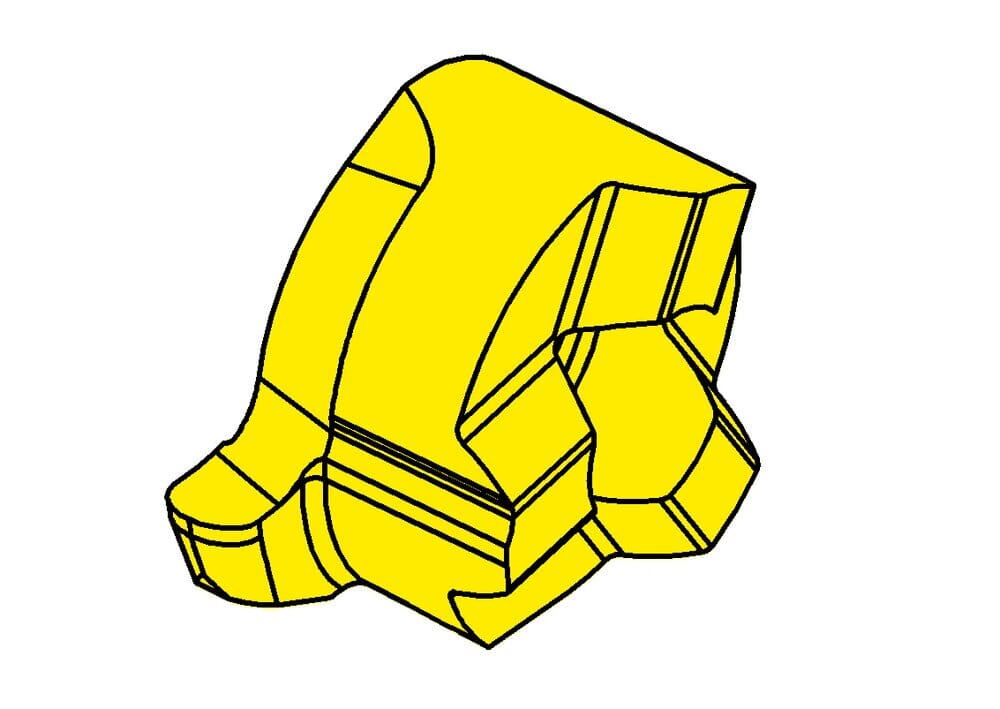

HORN Inserts L108.0006.12 MG12 for Turning
Please note:Technical instructions
ISO_SSC
HORN108060$84L$$$$$
Smallest bore diameter (Dmin)
8 mm
Cutting insert height, Cutting insert thickness (s)
3.2 mm
Radius, full-radius (r)
0.6 mm
Tooth diameter, head diameter (d)
6 mm
cutting-insert-width-met
7.8 mm
Setting range radial (f)
4.8 mm
cutting-insert-thickness-met
3.2 mm
milling-depth-groove-depth-max-met
1 mm
Width of groove (w)
1.2 mm
Katalog_SSC
108060L
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1 mm
Head size (a)
7.8 mm
Number of teeth (Z)
1 St.
Cutting diameter (Ds)
9.6 mm
| Downloads | |
|---|---|
| L108000612.DXF | Download |
| L108000612_20210630_091622316.STP | Download |
| Download all files | |
