L108.4748.01 EG55

Insert

Part number L108474801EG55

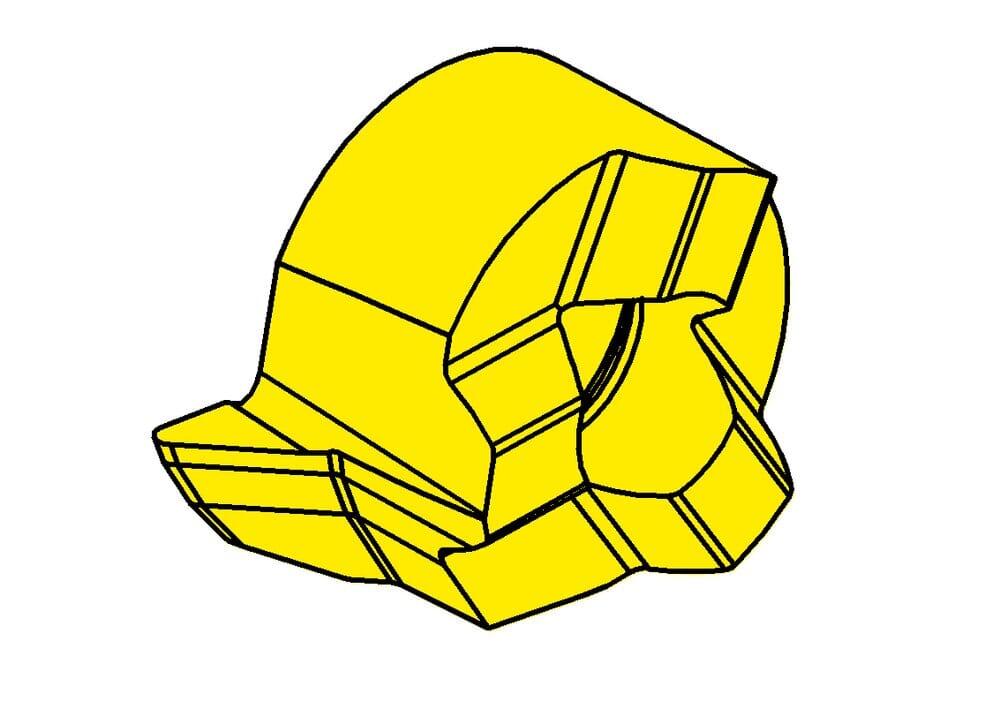

HORN Insert L108.4748.01 EG55 for Turning

Top radius (r)

0.1 mm

Head size (a)

7.65 mm

Maximum depth of groove (tmax)

1.2 mm

eclass-shortcut

21-18-20-11

ISO_SSC

HORN108060$84L$$$$$

Katalog_SSC

108060L

Setting range radial (f)

4.65 mm

Tooth diameter, head diameter (d)

6 mm

Cutting insert height, Cutting insert thickness (s)

3.2 mm

Smallest bore diameter (Dmin)

7.8 mm
