L108.4748.01 TH35
Insert
Part number L108474801TH35

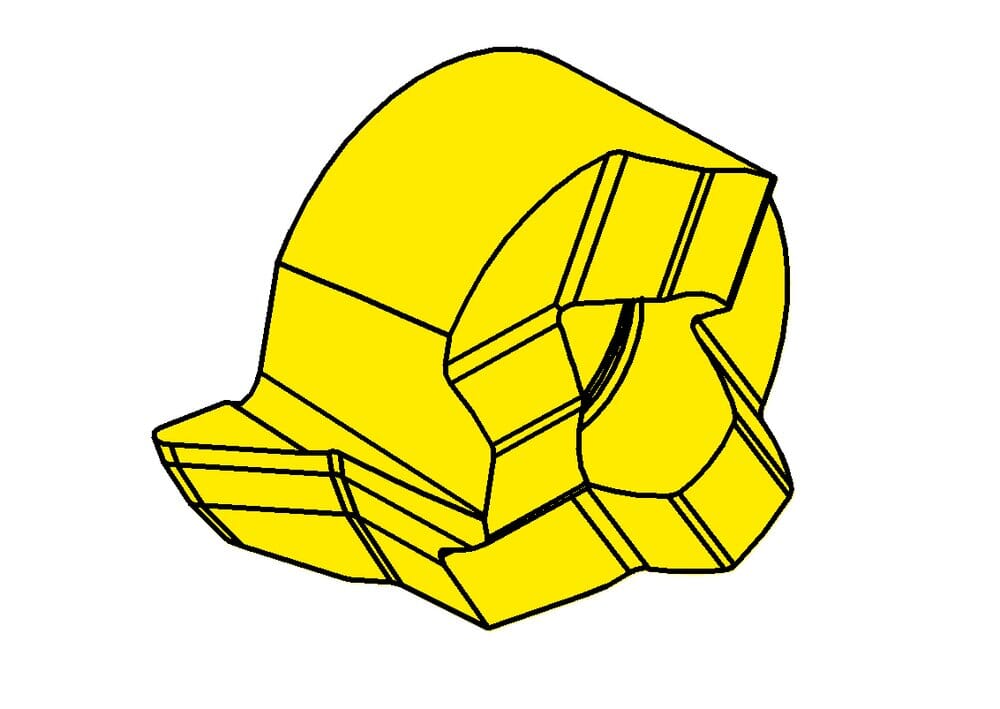

HORN Insert L108.4748.01 TH35 for Turning
Please note:Technical instructions
Top radius (r)
0.1 mm
Head size (a)
7.65 mm
Maximum depth of groove (tmax)
1.2 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN108060$84L$$$$$
Katalog_SSC
108060L
Setting range radial (f)
4.65 mm
Tooth diameter, head diameter (d)
6 mm
Cutting insert height, Cutting insert thickness (s)
3.2 mm
Smallest bore diameter (Dmin)
7.8 mm
