L109.0007.6.7 TH35
insert
Part number L109000767TH35

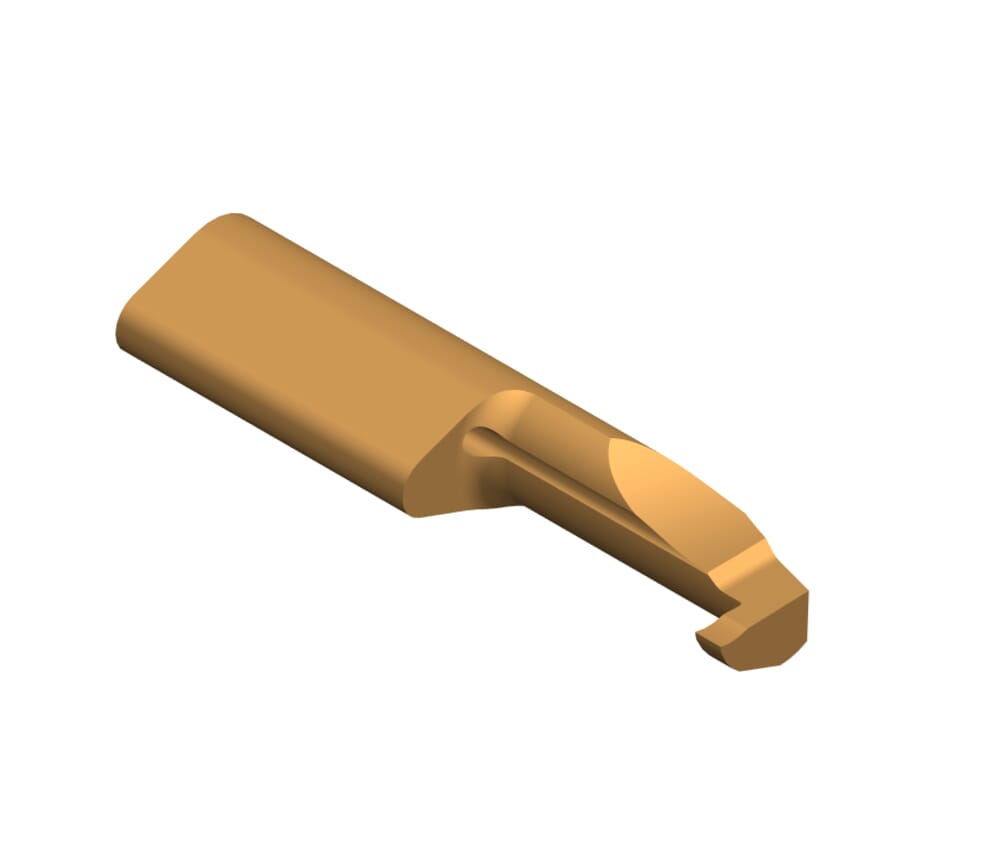

HORN insert L109.0007.6.7 TH35 for Turning
Please note:Technical instructions
Width of groove (w)
1.5 mm
Smallest bore diameter (Dmin)
7 mm
Total length (l5)
53 mm
Setting range radial (f)
3.8 mm
Neck diameter (d)
4 mm
Neck length (l2)
35 mm
Katalog_SSC
109140
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Full radius (r)
0.75 mm
Maximum depth of groove (tmax)
2.5 mm
Head size (a)
6.7 mm
| Downloads | |
|---|---|
| L109_0007_6_7_TH35-DXF.DXF | Download |
| L109_0007_6_7_TH35-STP.STP | Download |
| L109_0007_6_7_TH35-ISO.XML | Download |
| L109_0007_6_7_TH35-DIN.XML | Download |
| Download all files | |
