L109.0010.6.7 TH35
insert
Part number L109001067TH35

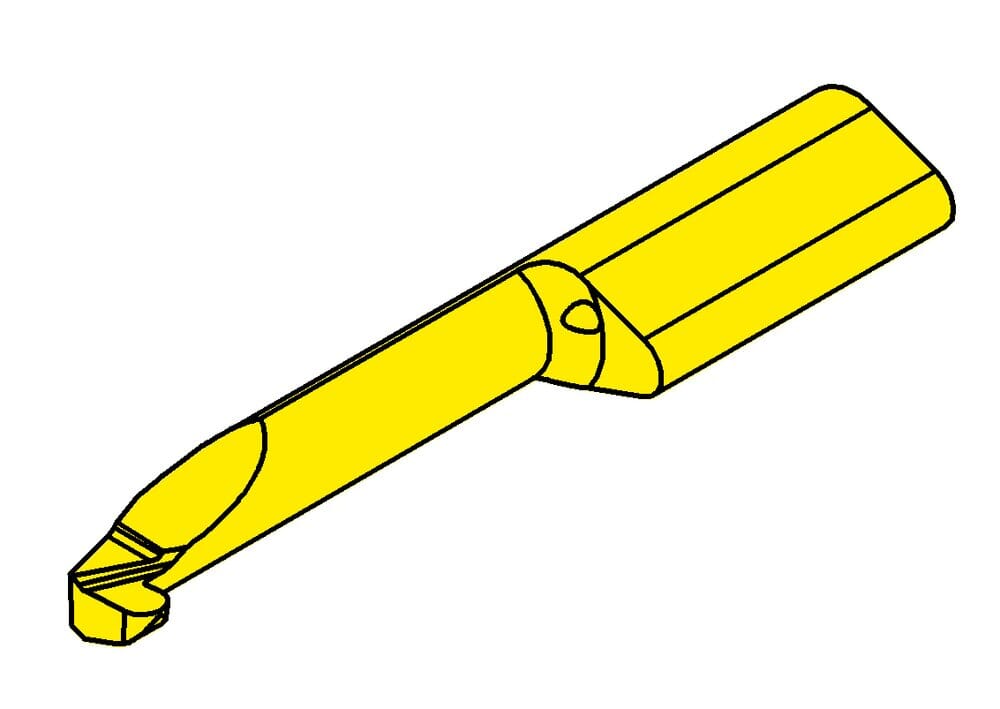

HORN insert L109.0010.6.7 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
7
mm
Total length (l5)
53
mm
Setting range radial (f)
3.8
mm
Neck diameter (d)
4
mm
Width of groove (w)
2
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
ISO_SSC
HORN109140$95N$$$$$
Full radius (r)
1
mm
Maximum depth of groove (tmax)
2.5
mm
Head size (a)
6.7
mm
Neck length (l2)
35
mm
