L109.0100.4.6 TH35
insert
Part number L109010046TH35

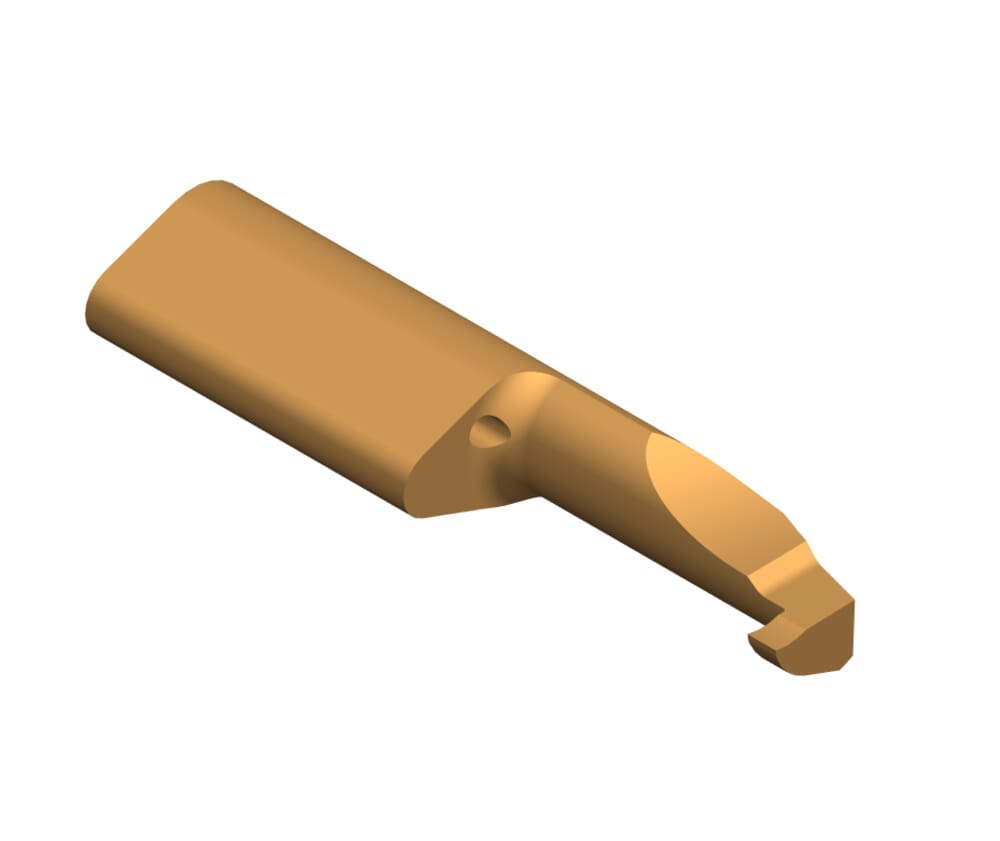

HORN insert L109.0100.4.6 TH35 for Turning
Please note:Technical instructions
Width of groove (w)
1 mm
Smallest bore diameter (Dmin)
6 mm
Total length (l5)
43 mm
Setting range radial (f)
2.8 mm
Neck diameter (d)
3.7 mm
Neck length (l2)
25 mm
Katalog_SSC
109140
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1.8 mm
Head size (a)
5.7 mm
| Downloads | |
|---|---|
| L109010046_20230112_214447492.STP | Download |
| L109010046_20211119_151616027.DXF | Download |
| Download all files | |
