L109.4545.5.7 TH35
insert
Part number L109454557TH35

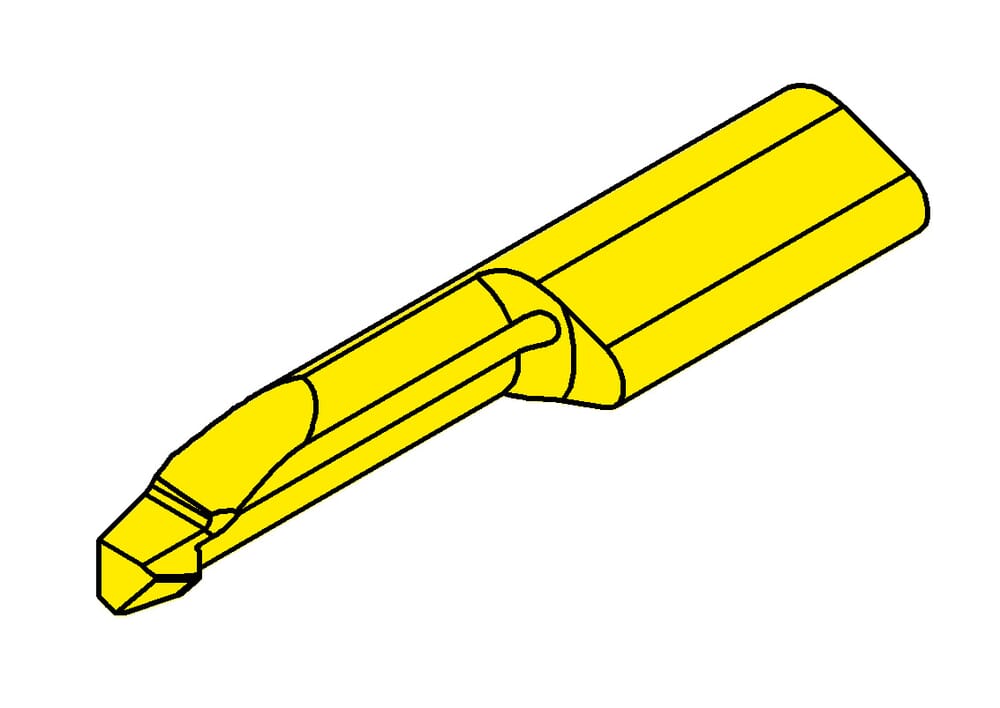

HORN insert L109.4545.5.7 TH35 for Turning
Please note:Technical instructions
Katalog_SSC
109140
Smallest bore diameter (Dmin)
7 mm
Total length (l5)
48 mm
Setting range radial (f)
3.8 mm
Neck diameter (d)
5.3 mm
Neck length (l2)
30 mm
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.9 mm
Head size (a)
6.7 mm
Adjustment dimension cutting center (E)
1.2 mm
Top radius (r)
0.2 mm
| Downloads | |
|---|---|
| L109_4545_5_7_TH35-DXF.DXF | Download |
| L109_4545_5_7_TH35-STP.STP | Download |
| L109_4545_5_7_TH35-ISO.XML | Download |
| L109_4545_5_7_TH35-DIN.XML | Download |
| Download all files | |
