L10P.0005.2.10 EG55

Insert

Part number L10P0005210EG55

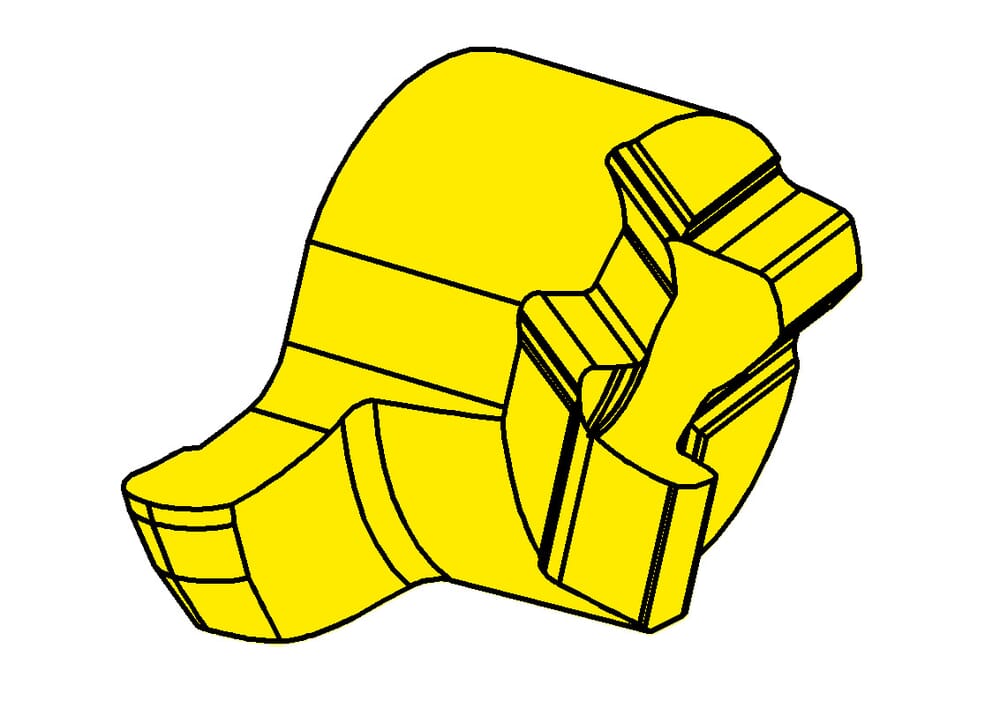

HORN Insert L10P.0005.2.10 EG55 for Turning

Head size (a)

9.5 mm

Maximum depth of groove (tmax)

3 mm

Full radius (r)

0.5 mm

ISO_SSC

HORN10P060$84L$$$$$

DIN_SSC

HORN-10P06084L

Katalog_SSC

10P060L

Width of groove (w)

1 mm

Setting range radial (f)

6.5 mm

Tooth diameter, head diameter (d)

6 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Smallest bore diameter (Dmin)

10 mm
