L110.0300.9.0 EG35
Insert
Part number L110030090EG35

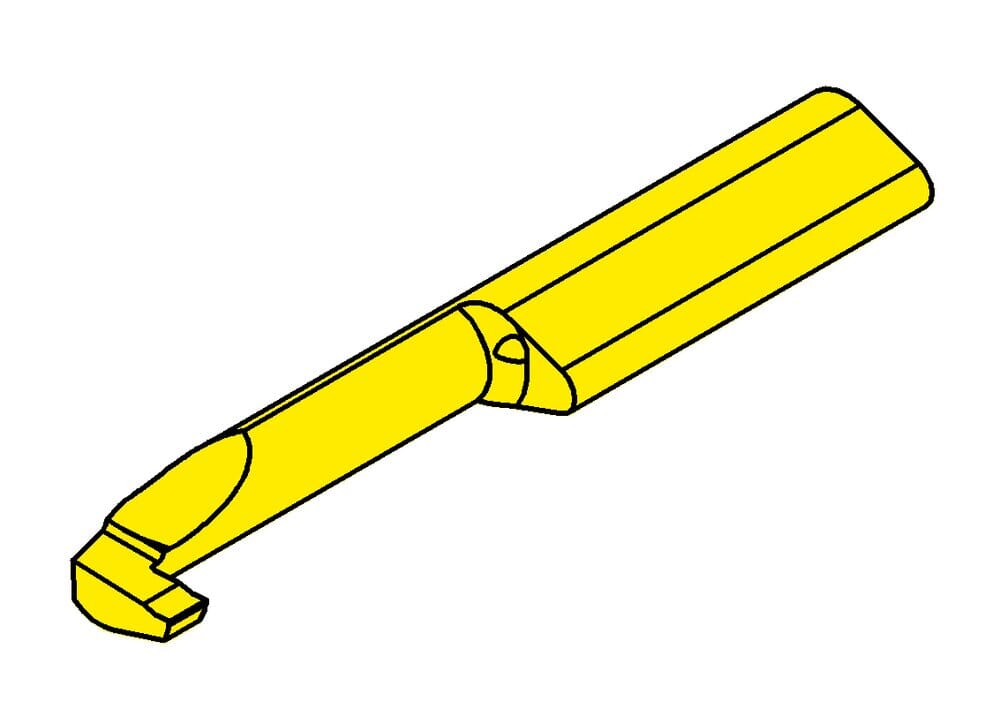

HORN Insert L110.0300.9.0 EG35 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
10
mm
Total length (l5)
80
mm
Setting range radial (f)
6
mm
Neck diameter (d)
5
mm
Width of groove (w)
3
mm
Katalog_SSC
110260
DIN_SSC
HORN-11026095N
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4
mm
Head size (a)
9.4
mm
Neck length (l2)
50
mm
| Downloads | |
|---|---|
| L110030090_20230112_214229113.STP | Download |
| L110030090.DXF | Download |
| Download all files | |
