L110.0300.9.0 TN35
Insert
Part number L110030090TN35

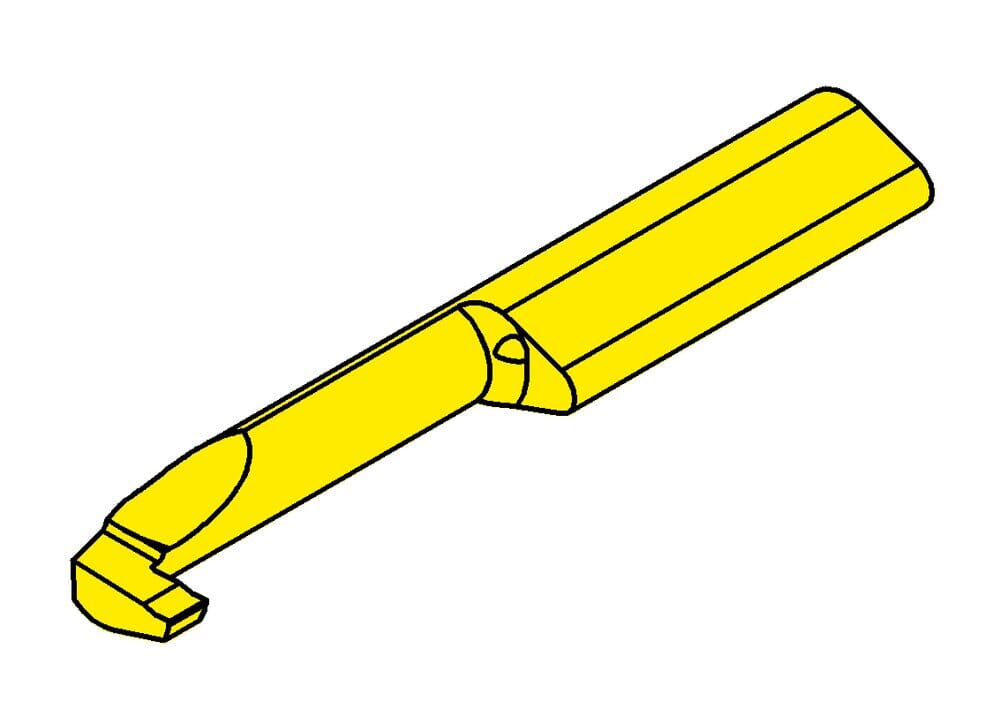

HORN Insert L110.0300.9.0 TN35 for Turning
Please note:Technical instructions
Width of groove (w)
3 mm
Smallest bore diameter (Dmin)
10 mm
Total length (l5)
80 mm
Setting range radial (f)
6 mm
Neck diameter (d)
5 mm
Neck length (l2)
50 mm
Katalog_SSC
110260
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4 mm
Head size (a)
9.4 mm
| Downloads | |
|---|---|
| L110_0300_9_0_TN35-DXF.DXF | Download |
| L110_0300_9_0_TN35-STP.STP | Download |
| L110_0300_9_0_TN35-ISO.XML | Download |
| L110_0300_9_0_TN35-DIN.XML | Download |
| Download all files | |
