L110.0300.9.0 TN35
Insert
Part number L110030090TN35
HORN Insert L110.0300.9.0 TN35 for Turning
Please note:Technical instructions

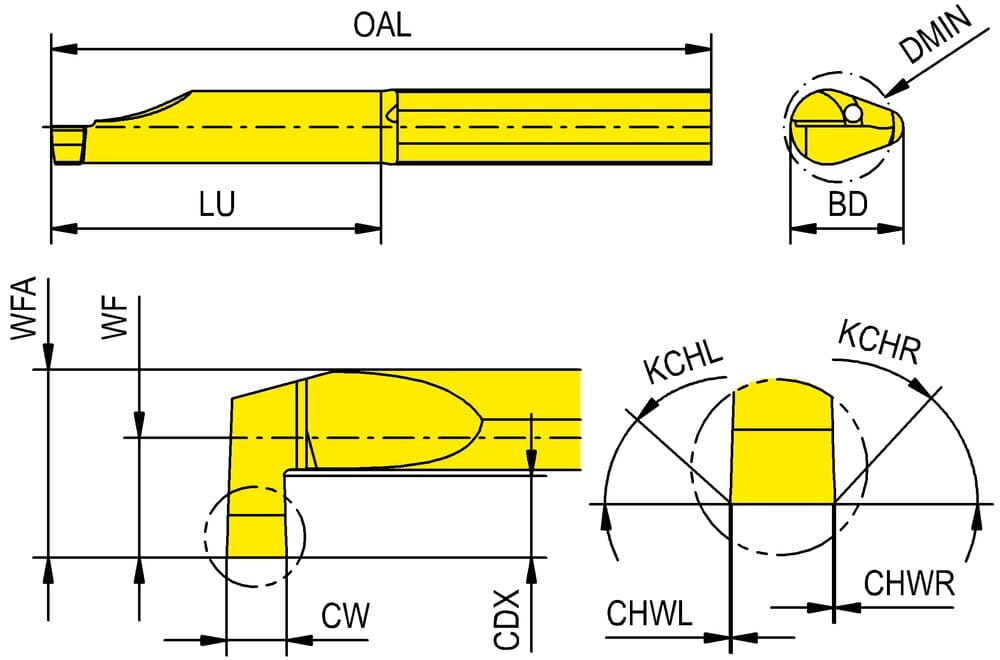

Corner chamfer width right hand (CHWR)
0.04 mm
Body diameter (BD)
10.3 mm
Cutting depth maximum (CDX)
4 mm
Cutting width (CW)
3 mm
Minimum bore diameter (DMIN)
10 mm
Usable length (LU)
50 mm
Overall length (OAL)
80 mm
Funktional width (WF)
6 mm
Corner chamfer width left hand (CHWL)
0.04 mm
Corner chamfer angle left hand (KCHL)
45 °
Corner chamfer angle right hand (KCHR)
45 °
Dimension a at working width (WFA)
9.4 mm
Cutting edge count (CEDC)
1
