L110.2140.9.8 EG35
Insert
Part number L110214098EG35

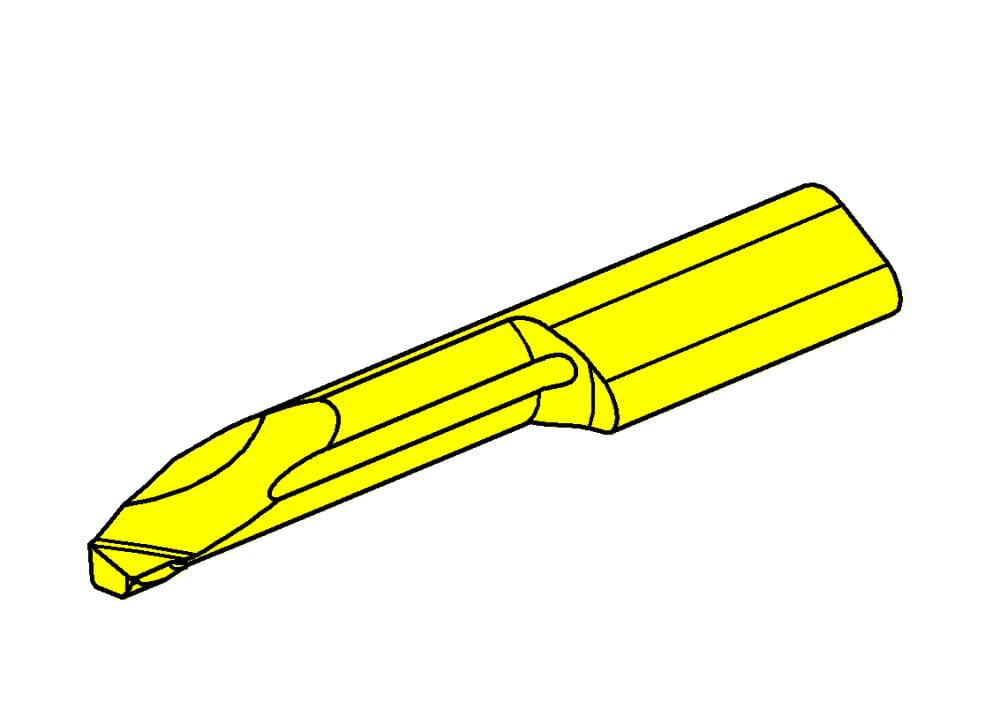

HORN Insert L110.2140.9.8 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
8
mm
Total length (l5)
80
mm
Setting range radial (f)
4
mm
Neck diameter (d)
6
mm
Katalog_SSC
110260
DIN_SSC
HORN-11026095N
ISO_SSC
HORN110260$95N$$$$$
Maximum depth of groove (tmax)
0.5
mm
Head size (a)
7.4
mm
Top radius (r)
0.2
mm
Neck length (l2)
50
mm
| Downloads | |
|---|---|
| L110214098_20230112_214111938.STP | Download |
| L110214098.DXF | Download |
| Download all files | |
