L111.0006.12 MG12

Inserts

Part number L111000612MG12

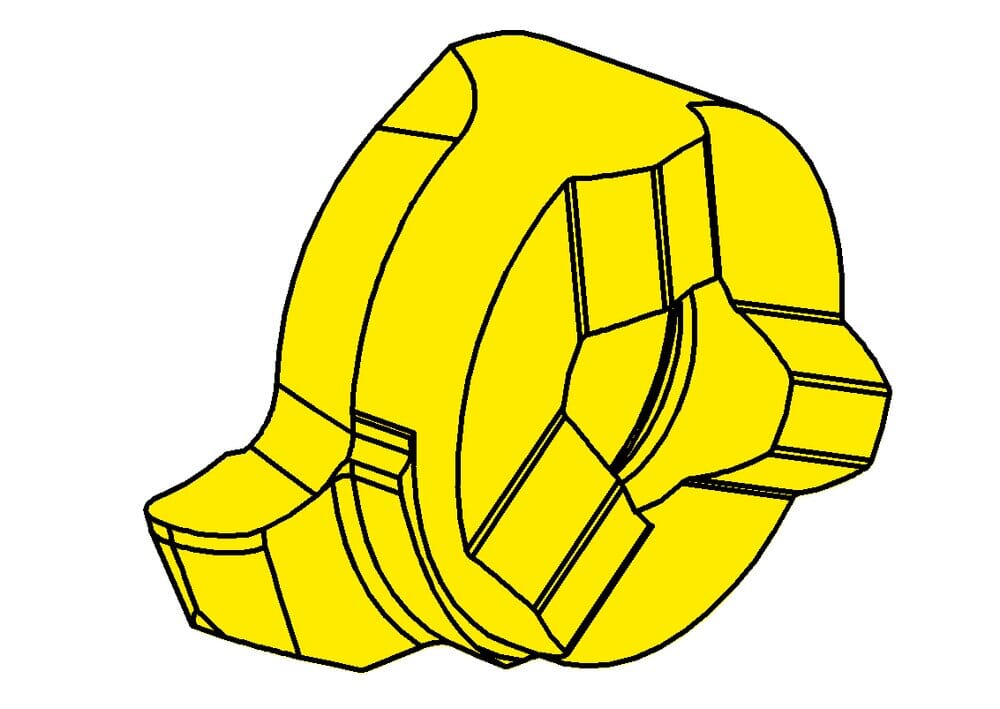

HORN Inserts L111.0006.12 MG12 for Turning

Smallest bore diameter (Dmin)

11 mm

Radius, full-radius (r)

0.6 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

Cutting insert thickness, setting length complete (s)

3.95 mm

Maximum milling depth/ depth of groove (tmax)

2.3 mm

Width of groove (w)

1.2 mm

Katalog_SSC

111080L

ISO_SSC

HORN111080$84L$$$$$

eclass-shortcut

21-18-20-11

depth-of-groove-max-met

2.3 mm

head-size-met

10.7 mm

Number of teeth (Z)

1 St.

Cutting diameter (Ds)

13.4 mm
