L111.0006.12 TH35
insert
Part number L111000612TH35

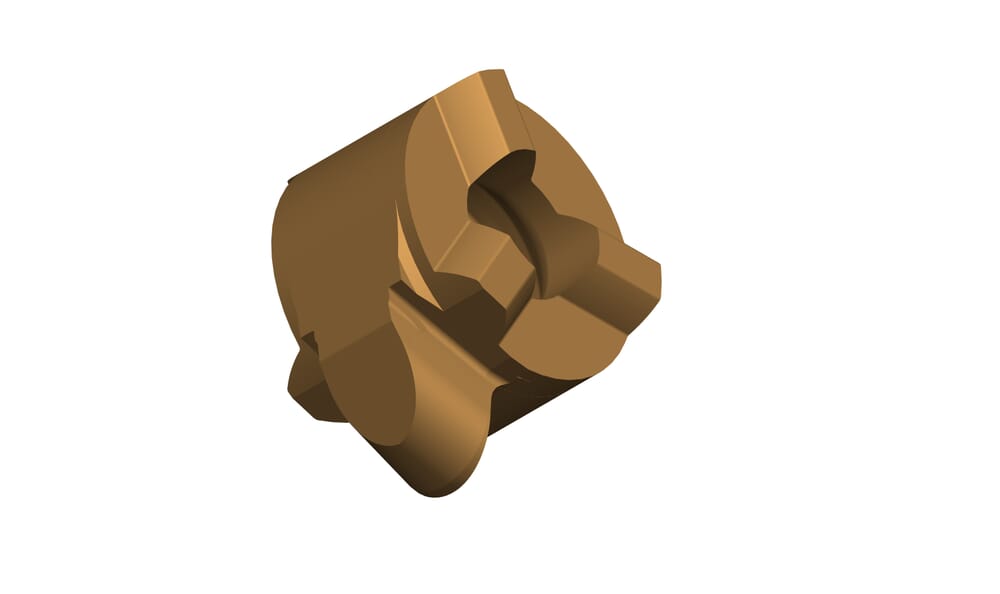

HORN insert L111.0006.12 TH35 for Turning
Please note:Technical instructions
ISO_SSC
HORN111080$84L$$$$$
Smallest bore diameter (Dmin)
11
mm
Radius, full-radius (r)
0.6
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Cutting insert thickness, setting length complete (s)
3.95
mm
Maximum milling depth/ depth of groove (tmax)
2.3
mm
Width of groove (w)
1.2
mm
Katalog_SSC
111080L
DIN_SSC
HORN-11108084L
eclass-shortcut
21-18-20-11
depth-of-groove-max-met
2.3
mm
head-size-met
10.7
mm
Number of teeth (Z)
1
St.
Cutting diameter (Ds)
13.4
mm
| Downloads | |
|---|---|
| L111000612_20210630_130354893.STP | Download |
| L111000612_20210627_162628721.DXF | Download |
| Download all files | |
