L114.4787.04 EG55
Insert
Part number L114478704EG55

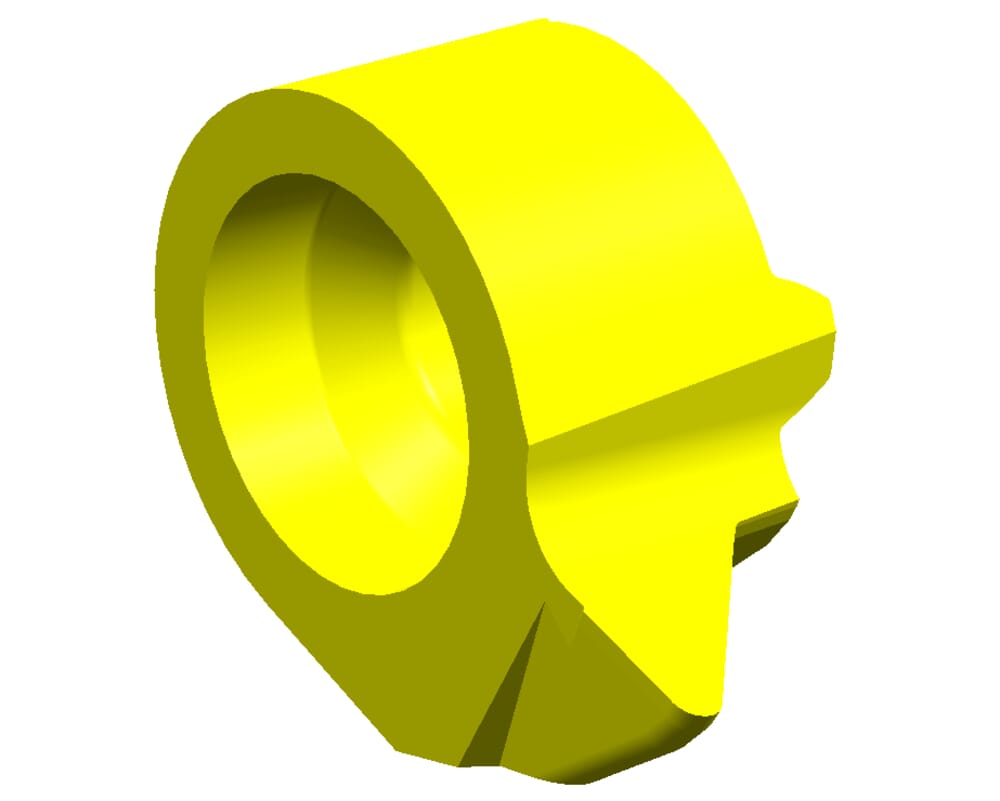

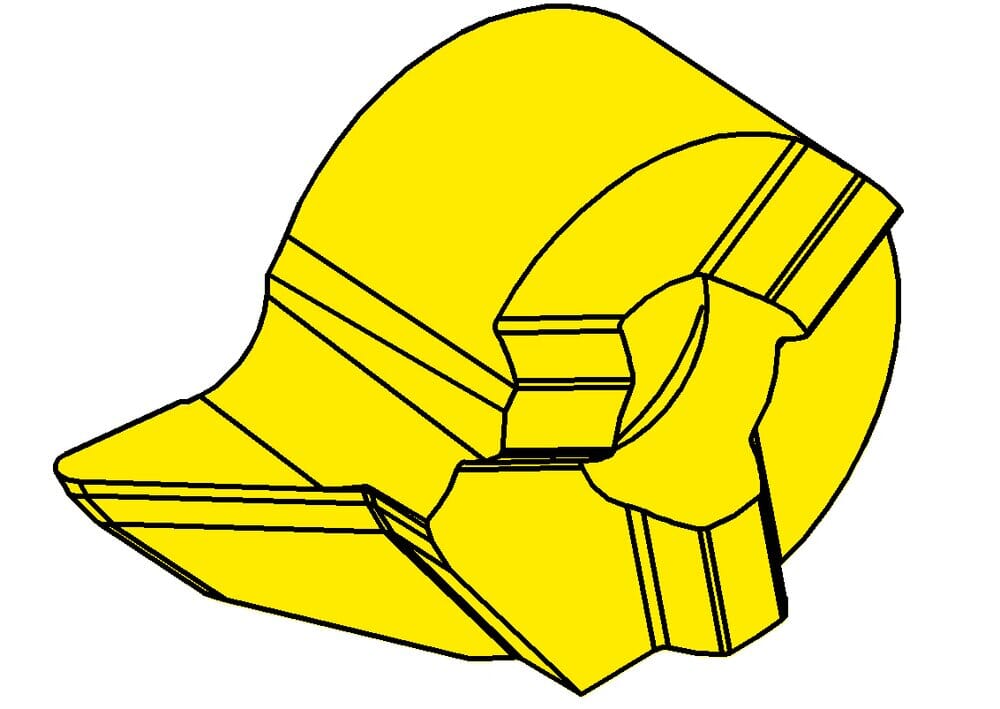

HORN Insert L114.4787.04 EG55 for Turning
Please note:Technical instructions
Top radius (r)
0.4 mm
Head size (a)
13.2 mm
Maximum depth of groove (tmax)
3 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN114090$84L$$$$$
Katalog_SSC
114090L
Setting range radial (f)
8.7 mm
Tooth diameter, head diameter (d)
9 mm
Cutting insert height, Cutting insert thickness (s)
5.3 mm
Smallest bore diameter (Dmin)
13.8 mm
| Downloads | |
|---|---|
| L114_4787_04_EG55-DXF.DXF | Download |
| L114_4787_04_EG55-STP.STP | Download |
| L114_4787_04_EG55-ISO.XML | Download |
| L114_4787_04_EG55-DIN.XML | Download |
| Download all files | |
