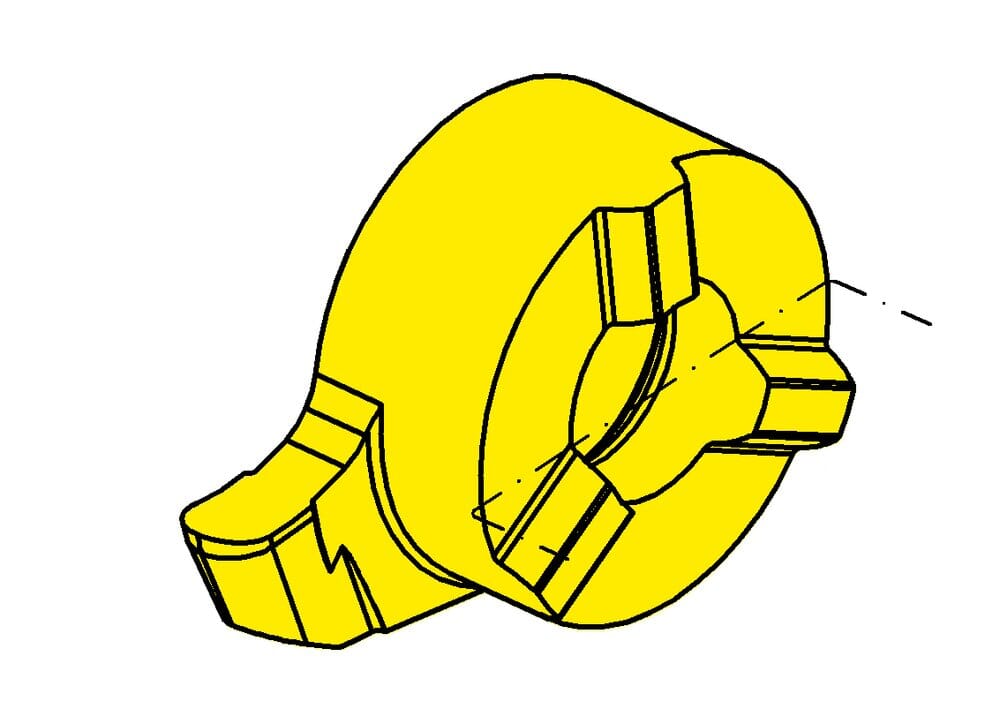

L116.0020.40 MG12

Inserts

Part number L116002040MG12

HORN Inserts L116.0020.40 MG12 for Milling and Turning

Setting range radial (f)

10.2 mm

Number of teeth (Z)

1 St.

Smallest bore diameter (Dmin)

16 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Radius, full-radius (r)

2 mm

Tooth diameter, head diameter (d)

11 mm

Cutting diameter (Ds)

20.4 mm

Width of groove (w)

4 mm

Katalog_SSC

116110L

ISO_SSC

HORN116110$84L$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4.3 mm

Head size (a)

15.7 mm
