L116.0020.40 TH35
insert
Part number L116002040TH35
HORN insert L116.0020.40 TH35 for Milling and Turning
Please note:Technical instructions

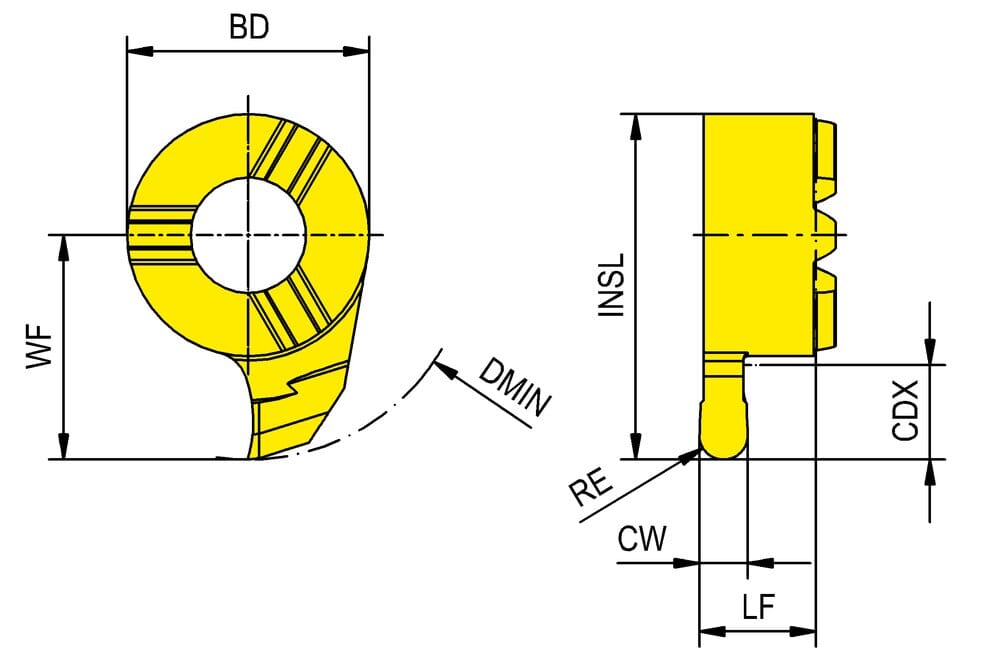

Cutting edge count (CEDC)
1
Funktional width (WF)
10.2 mm
Corner radius (RE)
2 mm
Functional length (LF)
5.3 mm
Insert length (INSL)
15.7 mm
Minimum bore diameter (DMIN)
16 mm
Cutting width (CW)
4 mm
Cutting depth maximum (CDX)
4.3 mm
Body diameter (BD)
11 mm
| Downloads | |
|---|---|
| L116_0020_40_TH35-DXF.DXF | Download |
| L116_0020_40_TH35-STP.STP | Download |
| L116_0020_40_TH35-ISO.XML | Download |
| L116_0020_40_TH35-DIN.XML | Download |
| Download all files | |
