L116.4702.02 TN35
Inserts
Part number L116470202TN35

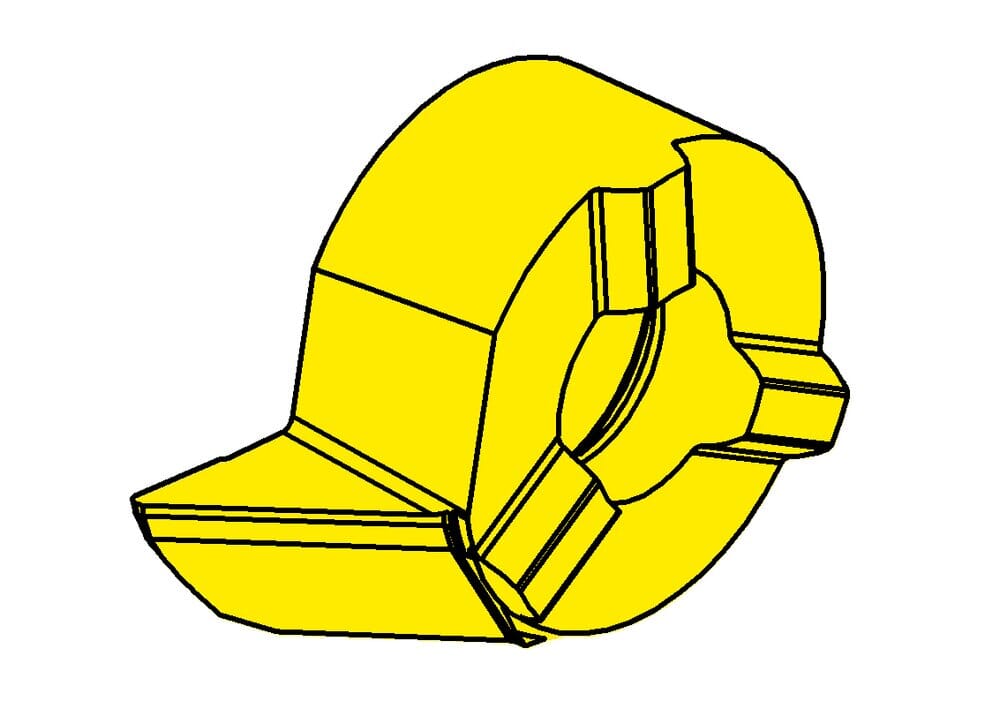

HORN Inserts L116.4702.02 TN35 for Turning
Please note:Technical instructions
Top radius (r)
0.2 mm
Head size (a)
15.7 mm
Maximum depth of groove (tmax)
4.3 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN116110$84L$$$$$
Katalog_SSC
116110L
Setting range radial (f)
10.2 mm
Tooth diameter, head diameter (d)
11 mm
Cutting insert height, Cutting insert thickness (s)
5.3 mm
Smallest bore diameter (Dmin)
16 mm
| Downloads | |
|---|---|
| L116_4702_02_TN35-DXF.DXF | Download |
| L116_4702_02_TN35-STP.STP | Download |
| L116_4702_02_TN35-ISO.XML | Download |
| L116_4702_02_TN35-DIN.XML | Download |
| Download all files | |
