L11P.0009.2.18 EG55
Insert
Part number L11P0009218EG55

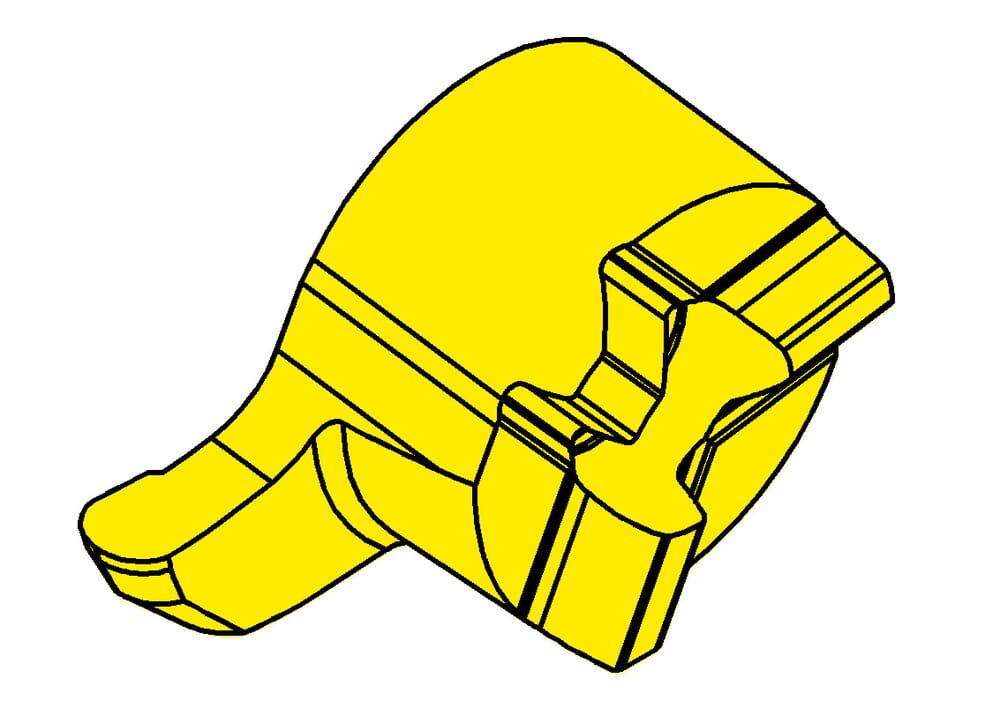

HORN Insert L11P.0009.2.18 EG55 for Turning
Please note:Technical instructions
Head size (a)
11
mm
Maximum depth of groove (tmax)
3.5
mm
Full radius (r)
0.9
mm
ISO_SSC
HORN11P070$84L$$$$$
DIN_SSC
HORN-11P07084L
Katalog_SSC
11P070L
Width of groove (w)
1.8
mm
Setting range radial (f)
7.5
mm
Tooth diameter, head diameter (d)
7
mm
Cutting insert height, Cutting insert thickness (s)
4.2
mm
Smallest bore diameter (Dmin)
11.5
mm
Downloads | |
---|---|
L11P0009218.STP | Download |
L11P0009218_20240205_211934702.DXF | Download |
Download all files |
