LA105.1030.15.2.2 EG35
Insert
Part number LA10510301522EG35

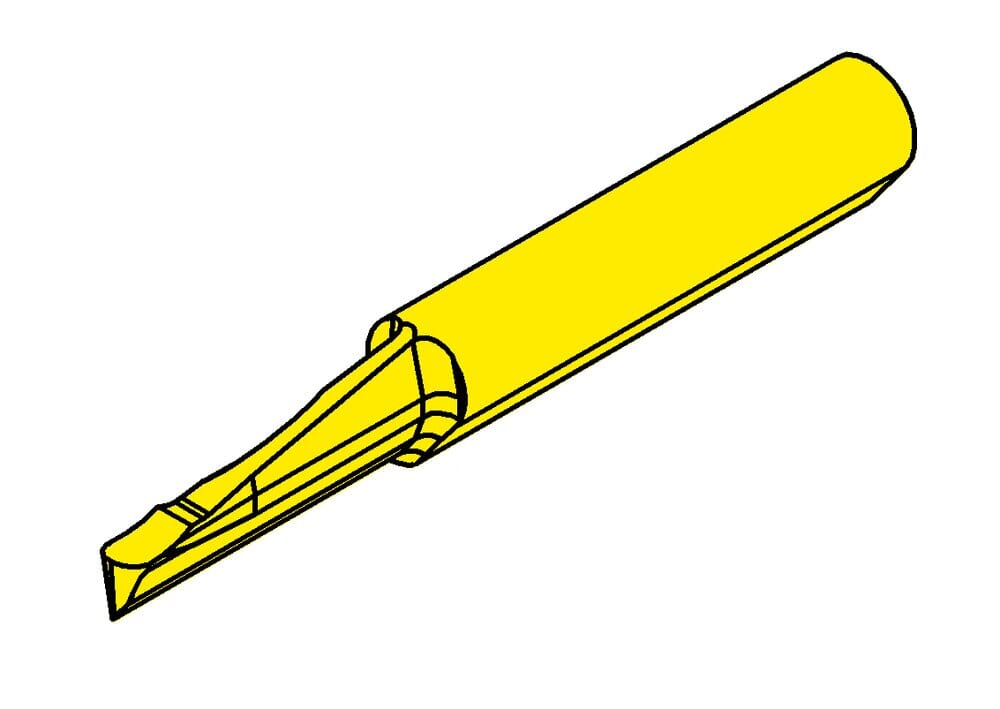

HORN Insert LA105.1030.15.2.2 EG35 for Turning
Please note:Technical instructions
Adjustment dimension cutting center (f)
1.9 mm
Maximum depth of groove (tmax a)
15 mm
Maximum starting outside diameter (Da max)
46 mm
Full radius (r)
1.5 mm
eclass-shortcut
21-18-20-11
Smallest axial bore diameter (Da min)
10 mm
ISO_SSC
HORN105225$95N$$$$$
Katalog_SSC
105225
Width of groove (w)
3 mm
Total length (l5)
40 mm
| Downloads | |
|---|---|
| LA105_1030_15_2_2_EG35-DXF.DXF | Download |
| LA105_1030_15_2_2_EG35-STP.STP | Download |
| LA105_1030_15_2_2_EG35-ISO.XML | Download |
| LA105_1030_15_2_2_EG35-DIN.XML | Download |
| Download all files | |
