M306.0716.02B

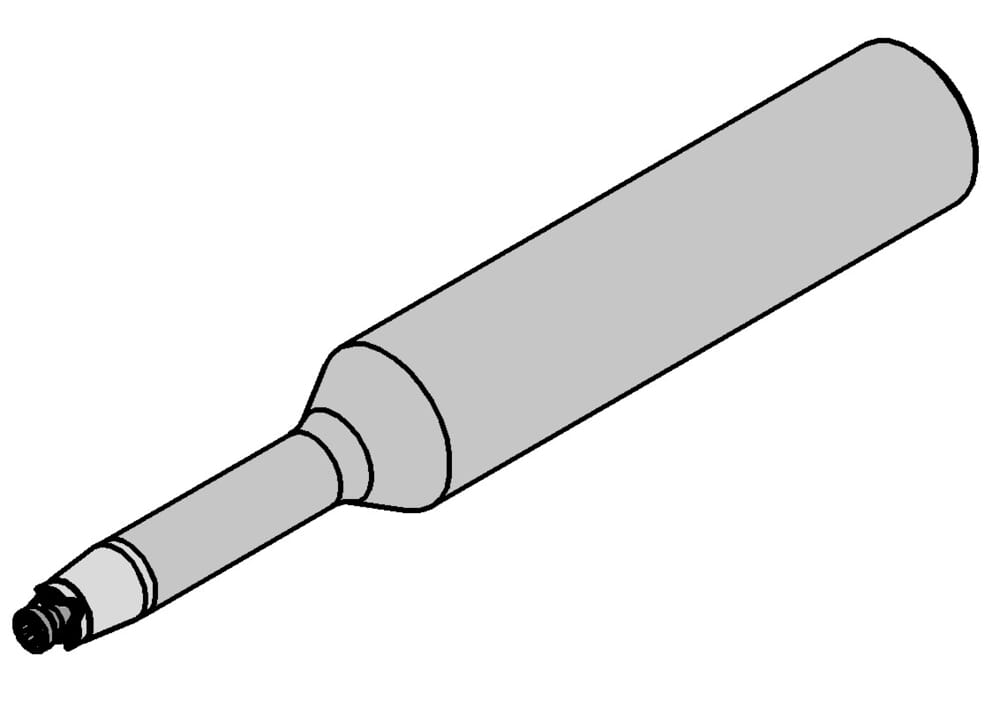

Toolholder
Part number M306071602B
HORN Toolholder M306.0716.02B for Milling
Please note:Technical instructions

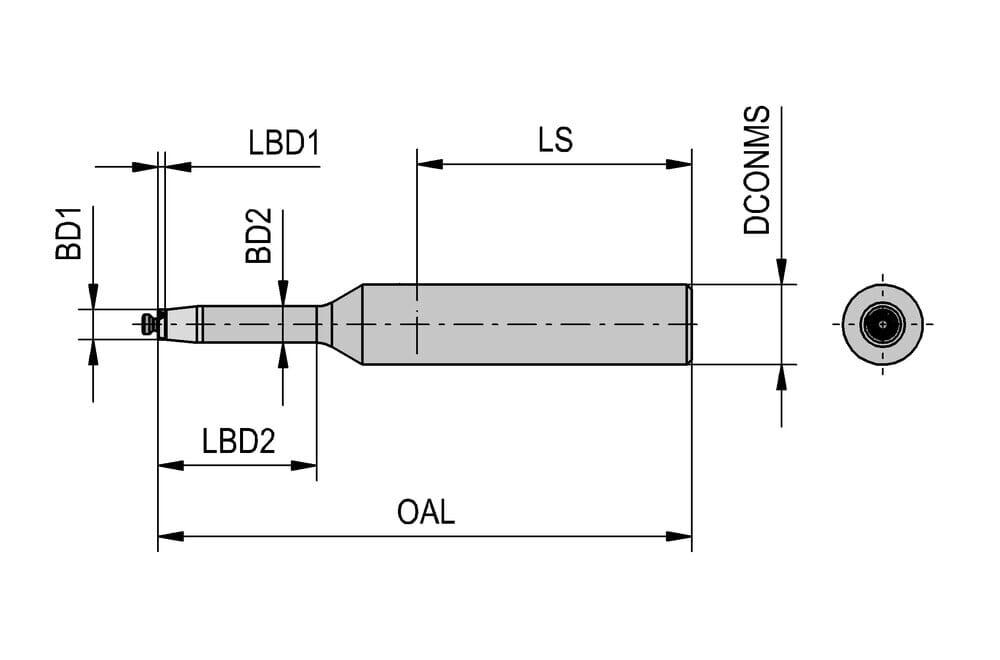

Length body diameter 2 (LBD2)
31.8 mm
Body diameter 2 (BD2)
7.3 mm
Length body diameter 1 (LBD1)
1.5 mm
Body diameter 1 (BD1)
6 mm
Overall length (OAL)
106.8 mm
Shank length (LS)
48 mm
connection diameter machine side (DCONMS)
16 mm
| Downloads | |
|---|---|
| M306_0716_02B-DXF.DXF | Download |
| M306_0716_02B-STP.STP | Download |
| M306_0716_02B-ISO.XML | Download |
| M306_0716_02B-DIN.XML | Download |
| Download all files | |
