RH100.2020.33.IK
Toolholder
Part number RH100202033IK

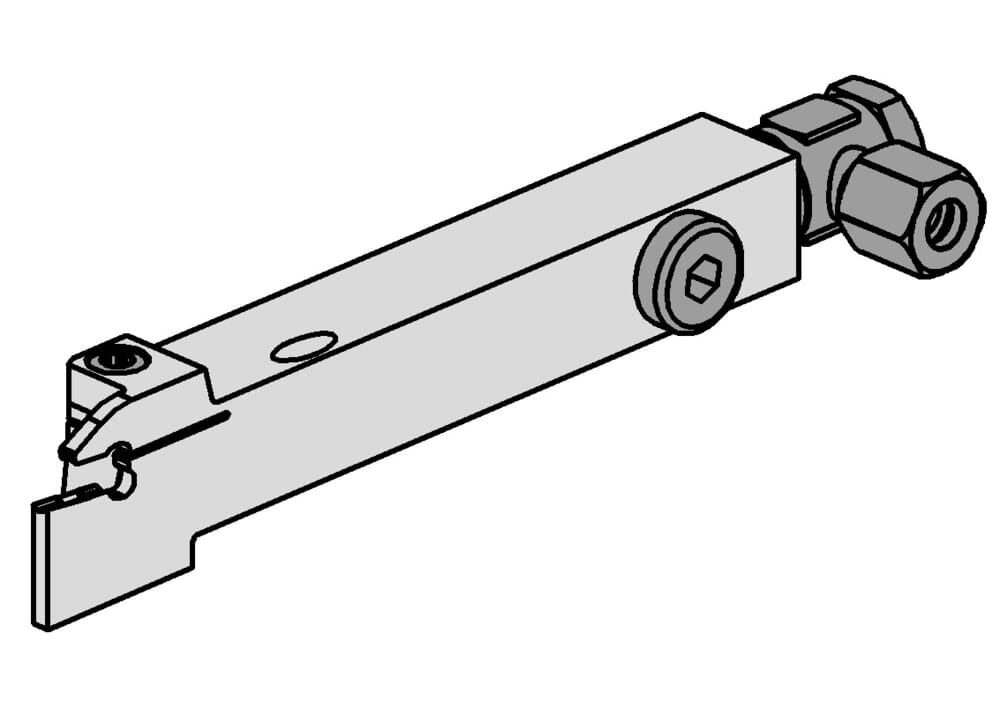

HORN Toolholder RH100.2020.33.IK for Turning
Please note:Technical instructions

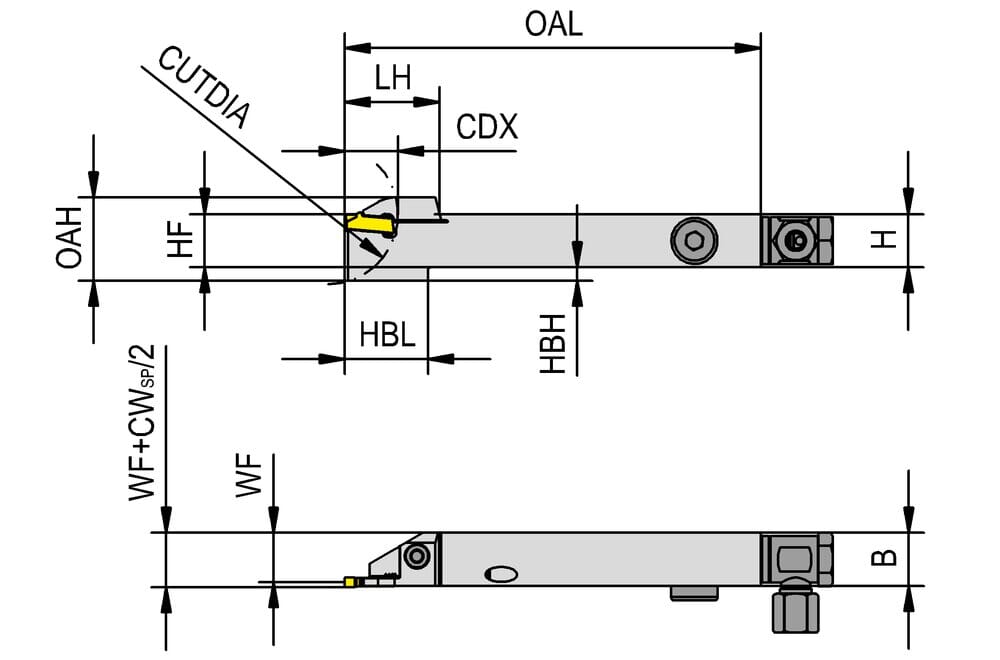

Head underbuild length (HBL)
35 mm
Head base height (HBH)
5 mm
Funktional width (WF)
18.85 mm
Overall length (OAL)
125 mm
Overall heigth (OAH)
31.6 mm
Head length (LH)
38.5 mm
Functional height (HF)
20 mm
Shank height (H)
20 mm
Work piece parting diameter maximum (CUTDIA)
42 mm
Cutting depth maximum (CDX)
33 mm
Shank width (B)
20 mm
