R105.0100.2.4 TN35
Inserts
Part number R105010024TN35

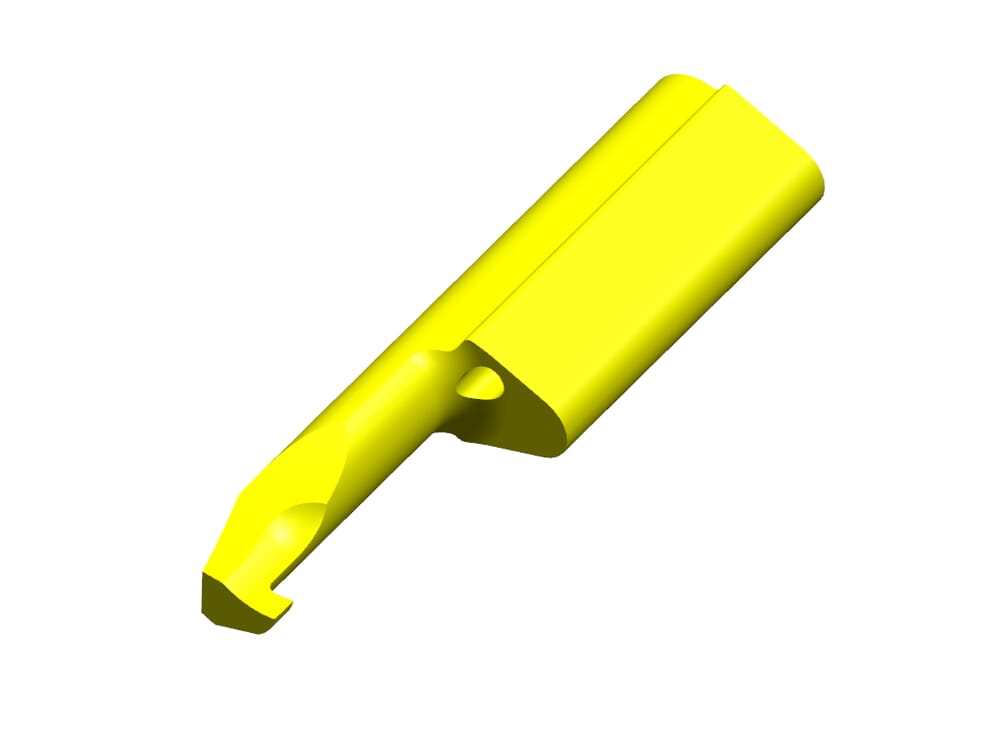

HORN Inserts R105.0100.2.4 TN35 for Turning
Please note:Technical instructions

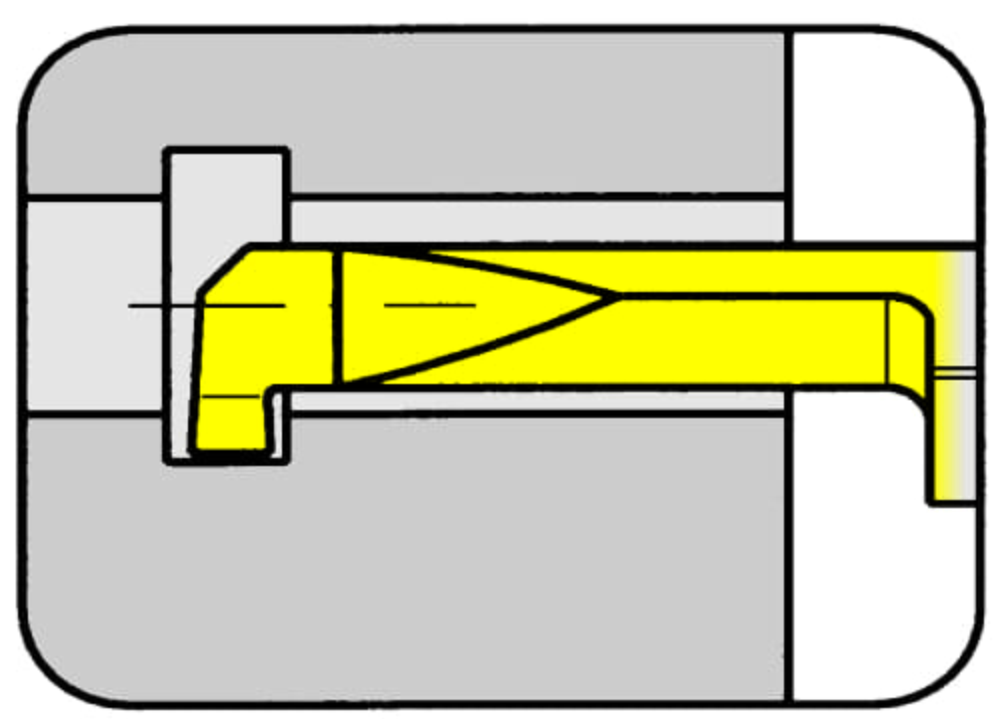

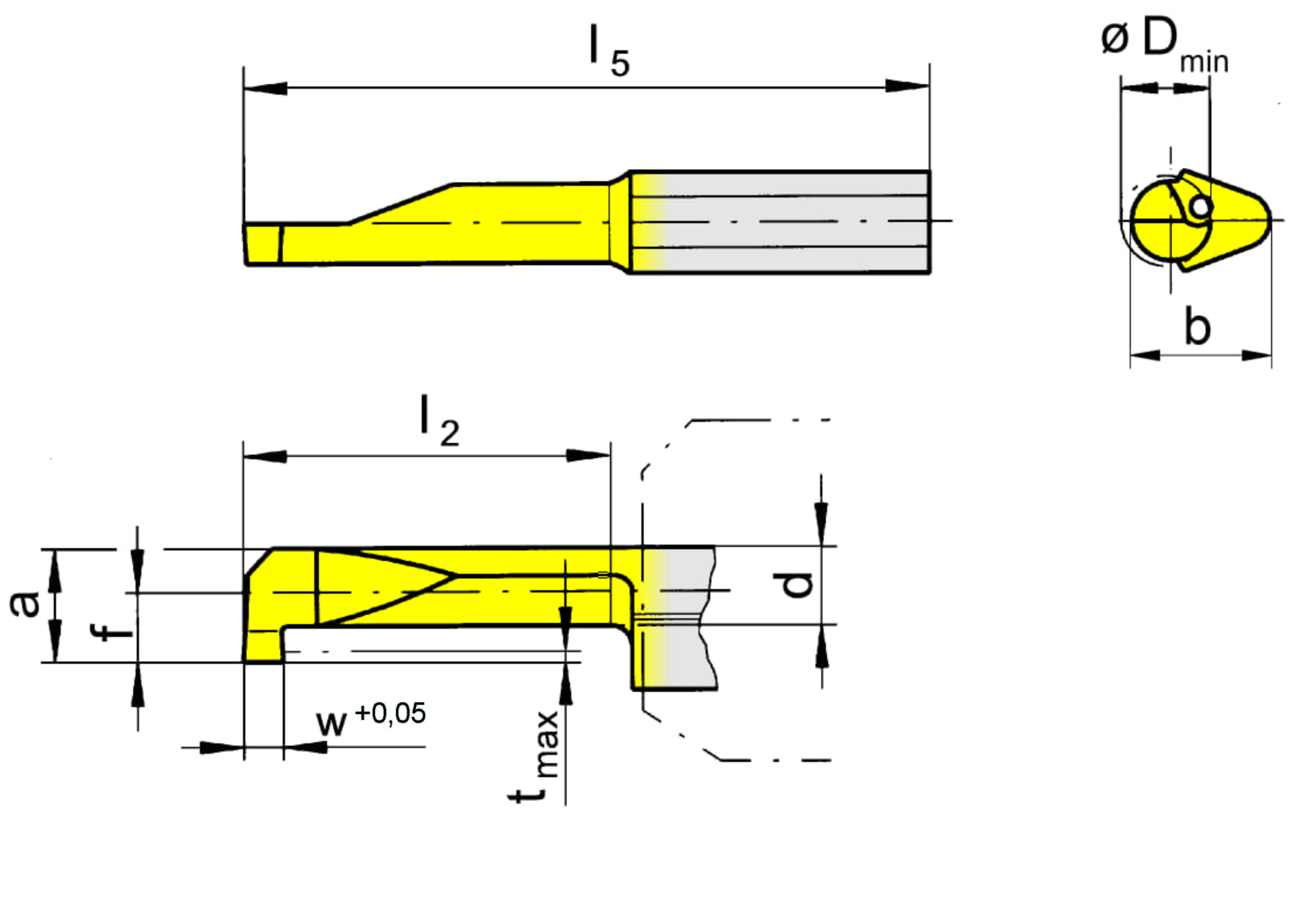

Width of blank (b)
6.4
mm
Smallest bore diameter (Dmin)
4
mm
Total length (l5)
30
mm
Setting range radial (f)
1.9
mm
Neck diameter (d)
2.7
mm
Width of groove (w)
1
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.8
mm
Head size (a)
3.7
mm
Neck length (l2)
15
mm
